MUSA
01.1342

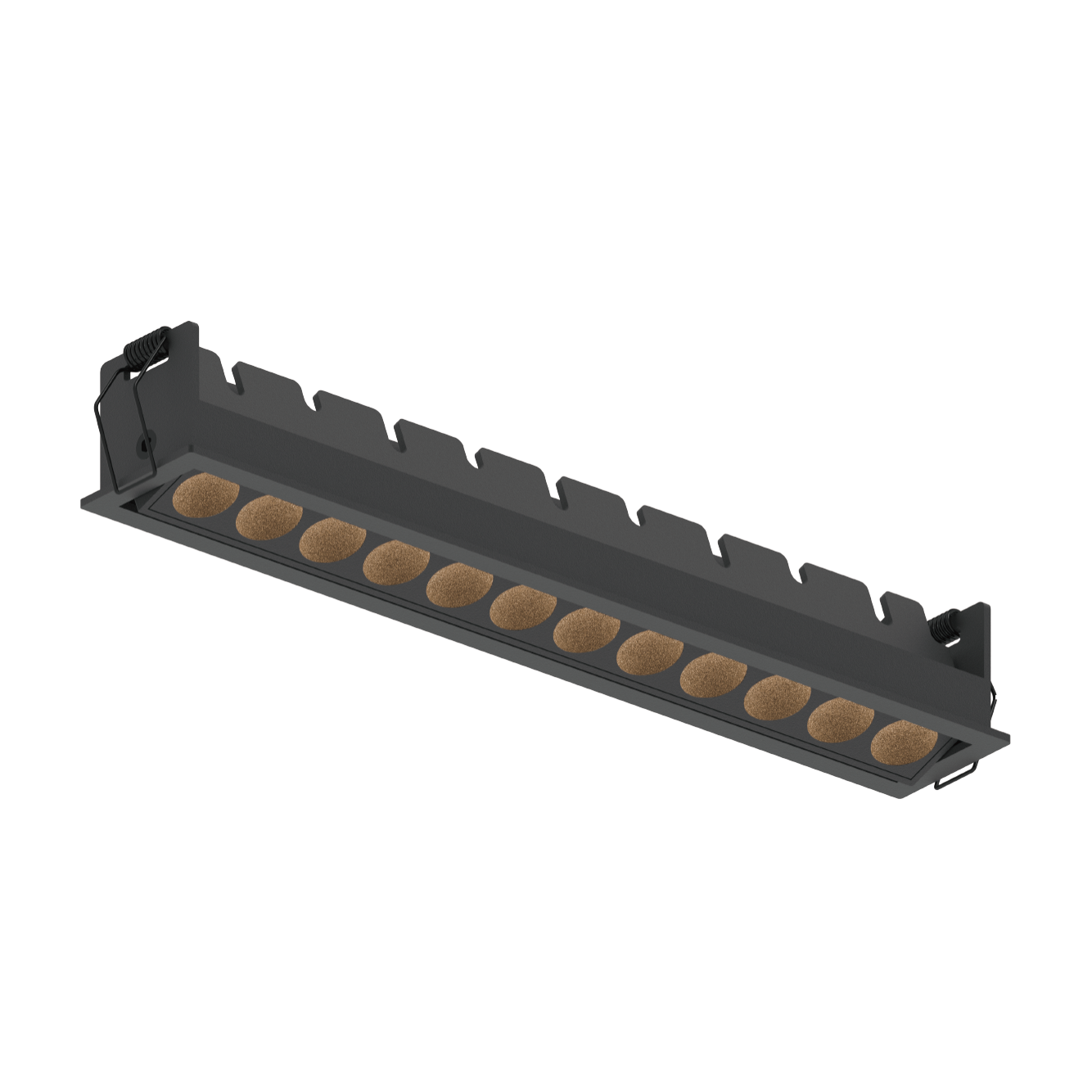

Musa 12-Adjustable

MUSA is the very first line of compact, linear downlight that provide contrast, invisibility and versatility both for indoor and outdoor applications. Decentralized LED sources distribute the luminance of one single LED to up 12 LEDs which greatly reduce the glare effect. On top of that, our customized optics system is comprised of anti-glare lampshade and optics. The optics collect each and every light from the LEDs within the beam axis with barely no dispersion. The achievement is a pre-defined yet highly-efficient beam that comes from the luminaire. The lampshade increases the shielding angle to avoid the direct viewing of the LEDs without affecting the light. Then we pack them inside of our pre-calculated housing to maximize the PD(W/mm2) while maintaining a compact form factor. Moreover, the housing supports adjustability and water-proof features greatly extend its application to vertical illumination and outdoor architectural structure.

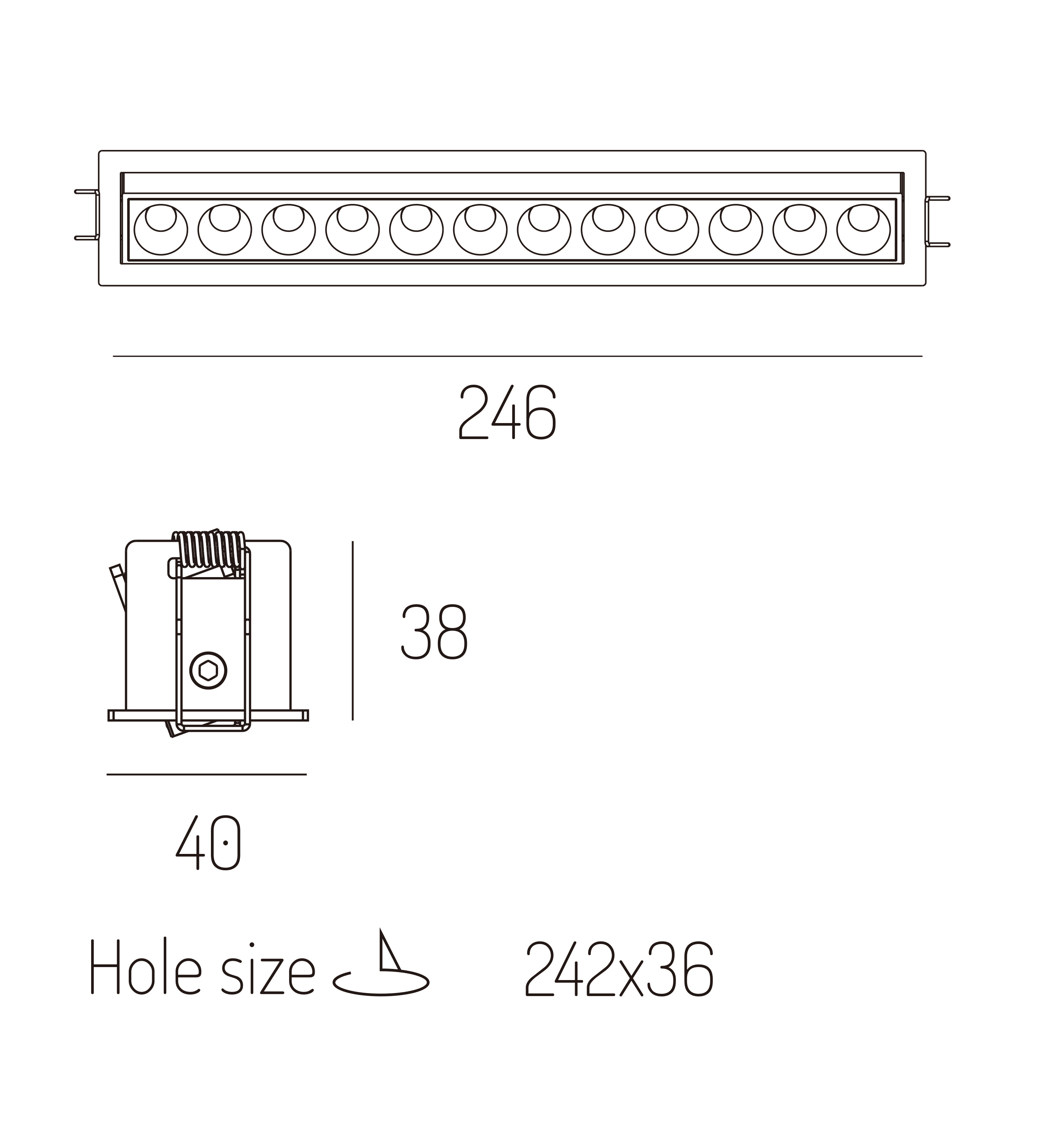

Technical Drawing
product data
  • Fixture Power
    12W/20W
  • Driving Current
    300mA/500mA
  • Lumen Output
    738lm/1230lm
  • Fixture Efficiency
    61.5lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K
LIGHT DISTRIBUTION
  • Beam Angle
    15°/24°/36°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    Phase-cut Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L246*W40*H38mm
  • Hole Size
    242*36mm
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Die-cast Aluminium
  • Housing Color
    RAL9016
    Traffic White
    RAL9005
    Jet Black
    RAL9006
    White Aluminium
    RAL9022
    Pearl Light Grey
    RAL9023
    Pearl Dark Grey
    RAL1035
    Pearl Beige
    RAL3015
    Light Pink
Optical Accessories
Filter codes by
No.
All No.
Power
All Power
12W
20W
Current
All Current
300mA
500mA
CCT
All CCT
2700K
3000K
4000K
Flux
All Flux
1230lm
738lm
Beam
All Beam
15°
24°
36°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
12W
300mA
2700K
738lm
15°
12W
300mA
3000K
738lm
15°
12W
300mA
4000K
738lm
15°
12W
300mA
2700K
738lm
24°
12W
300mA
3000K
738lm
24°
12W
300mA
4000K
738lm
24°
12W
300mA
2700K
738lm
36°
12W
300mA
3000K
738lm
36°
12W
300mA
4000K
738lm
36°
20W
500mA
2700K
1230lm
15°
20W
500mA
3000K
1230lm
15°
20W
500mA
4000K
1230lm
15°
20W
500mA
2700K
1230lm
24°
20W
500mA
3000K
1230lm
24°
20W
500mA
4000K
1230lm
24°
20W
500mA
2700K
1230lm
36°
20W
500mA
3000K
1230lm
36°
20W
500mA
4000K
1230lm
36°
