SINFONIA
04.0016/04.0017/04.0018

SINFONIA 60

The Sinfonia is a minimalistic surface-mounted downlighting luminaires comprised of a cylinder profile and interchangeable decorative ring. The cylinder profile incorporates dedicated optical system creating a soft oval ambient light whereas the asymmetric distribution version perfectly utilizes the decorative ring as a no-glare shielding. The design of Sinfonia follows the principle of“play of light, architect and art”. If you take closer look at the edge of the profile, the collision of anodized aluminum and the glided inwall is the final touch to the surface treatment. The subtleness and delicacy make Sinfonia not only a lighting tool and also a decorative element in the air or on the ceiling within the space. A 2700K bronze finish version yellowish of light emission through the decorative ring together with the bronze finish turning the atmosphere a fireplace within.

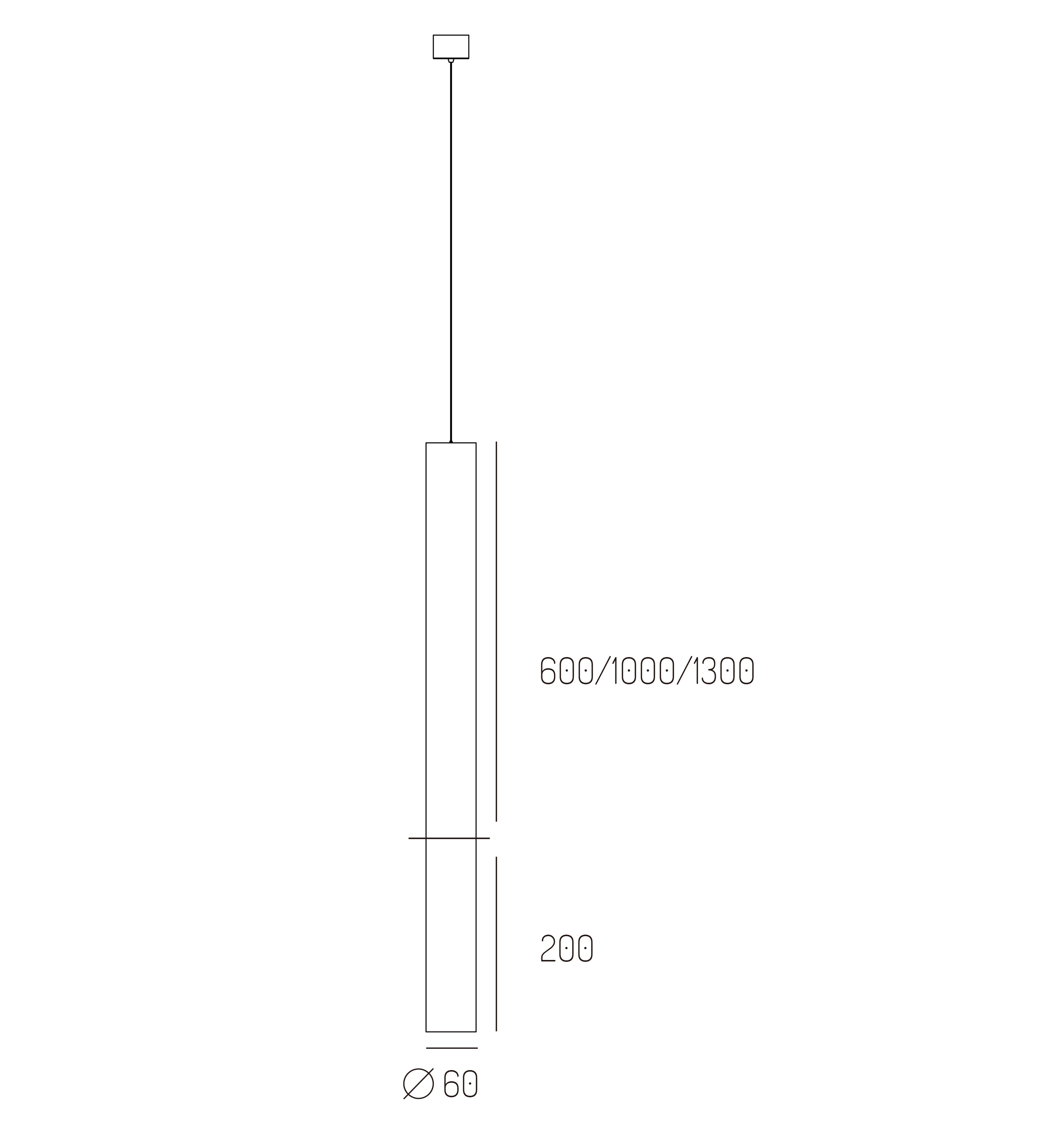

Technical Drawing
product data
  • Fixture Power
    8W/20W
  • Driving Current
    /
  • Lumen Output
    589lm/1404lm
  • Fixture Efficiency
    73.6lm/w
    70.2lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

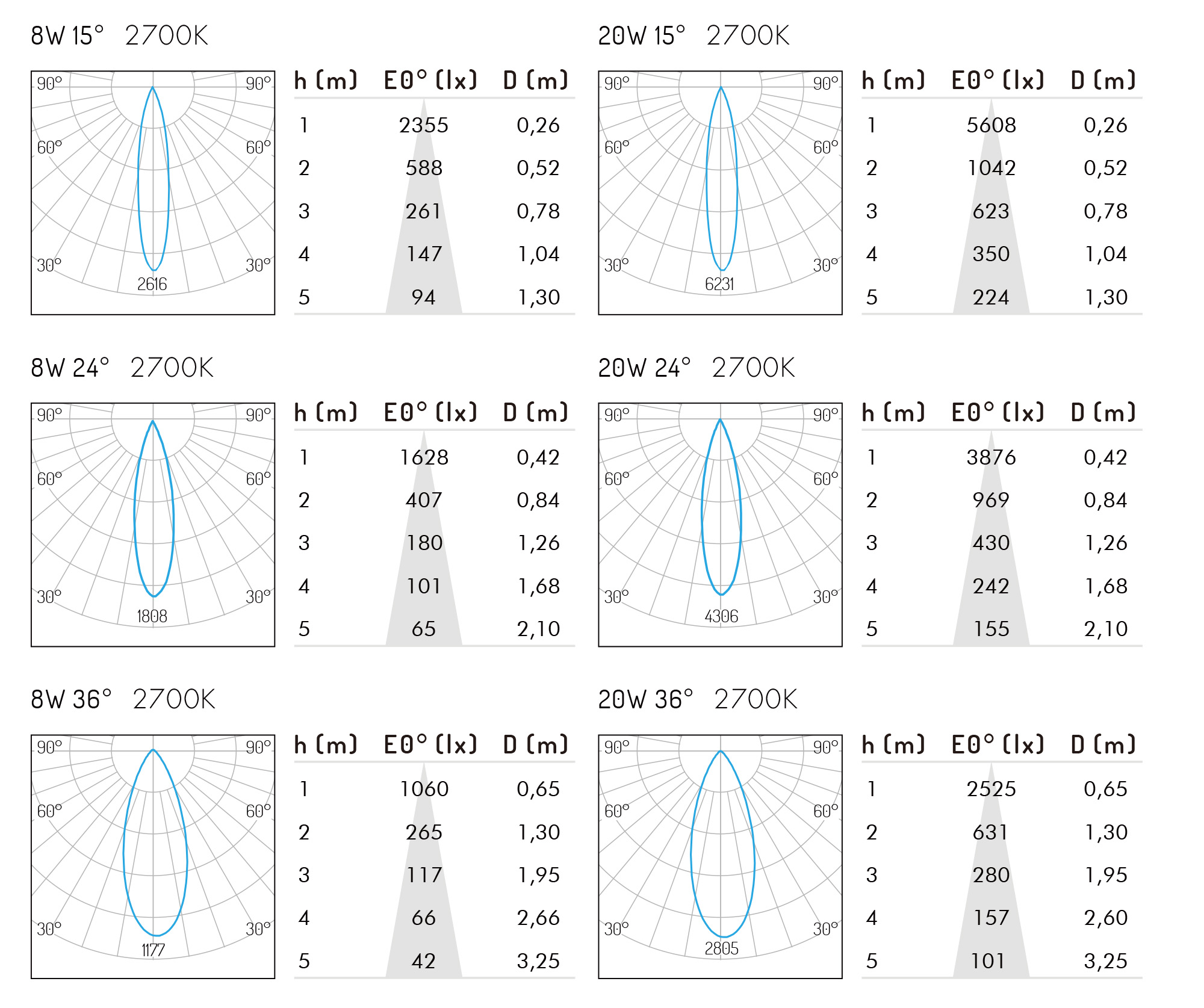

LIGHT DISTRIBUTION
  • Beam Angle
    15°/24°/36°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    0-10V Dimming
    DALI Dimming
    Phase-cut Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    Ø60*800/1200/1500mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9005
    Jet Black
    RAL9016
    Traffic White
    RAL1035
    Pearl Beige
    RAL3015
    Light Pink
Filter codes by
No.
All No.
04.0016
04.0017
04.0018
Power
All Power
20W
8W
Current
All Current
CCT
All CCT
2700K
3000K
4000K
Flux
All Flux
1404lm
589lm
Beam
All Beam
15°
24°
36°
Length
All Length
1000mm
1300mm
600mm
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
04.0016
8W
2700K
589lm
15°
600mm
04.0016
8W
3000K
589lm
15°
600mm
04.0016
8W
4000K
589lm
15°
600mm
04.0016
8W
2700K
589lm
24°
600mm
04.0016
8W
3000K
589lm
24°
600mm
04.0016
8W
4000K
589lm
24°
600mm
04.0016
8W
2700K
589lm
36°
600mm
04.0016
8W
3000K
589lm
36°
600mm
04.0016
8W
4000K
589lm
36°
600mm
04.0016
20W
2700K
1404lm
15°
600mm
04.0016
20W
3000K
1404lm
15°
600mm
04.0016
20W
4000K
1404lm
15°
600mm
04.0016
20W
2700K
1404lm
24°
600mm
04.0016
20W
3000K
1404lm
24°
600mm
04.0016
20W
4000K
1404lm
24°
600mm
04.0016
20W
2700K
1404lm
36°
600mm
04.0016
20W
3000K
1404lm
36°
600mm
04.0016
20W
4000K
1404lm
36°
600mm
04.0017
8W
2700K
589lm
15°
1000mm
04.0017
8W
3000K
589lm
15°
1000mm
04.0017
8W
4000K
589lm
15°
1000mm
04.0017
8W
2700K
589lm
24°
1000mm
04.0017
8W
3000K
589lm
24°
1000mm
04.0017
8W
4000K
589lm
24°
1000mm
04.0017
8W
2700K
589lm
36°
1000mm
04.0017
8W
3000K
589lm
36°
1000mm
04.0017
8W
4000K
589lm
36°
1000mm
04.0017
20W
2700K
1404lm
15°
1000mm
04.0017
20W
3000K
1404lm
15°
1000mm
04.0017
20W
4000K
1404lm
15°
1000mm
04.0017
20W
2700K
1404lm
24°
1000mm
04.0017
20W
3000K
1404lm
24°
1000mm
04.0017
20W
4000K
1404lm
24°
1000mm
04.0017
20W
2700K
1404lm
36°
1000mm
04.0017
20W
3000K
1404lm
36°
1000mm
04.0017
20W
4000K
1404lm
36°
1000mm
04.0018
8W
2700K
589lm
15°
1300mm
04.0018
8W
3000K
589lm
15°
1300mm
04.0018
8W
4000K
589lm
15°
1300mm
04.0018
8W
2700K
589lm
24°
1300mm
04.0018
8W
3000K
589lm
24°
1300mm
04.0018
8W
4000K
589lm
24°
1300mm
04.0018
8W
2700K
589lm
36°
1300mm
04.0018
8W
3000K
589lm
36°
1300mm
04.0018
8W
4000K
589lm
36°
1300mm
04.0018
20W
2700K
1404lm
15°
1300mm
04.0018
20W
3000K
1404lm
15°
1300mm
04.0018
20W
4000K
1404lm
15°
1300mm
04.0018
20W
2700K
1404lm
24°
1300mm
04.0018
20W
3000K
1404lm
24°
1300mm
04.0018
20W
4000K
1404lm
24°
1300mm
04.0018
20W
2700K
1404lm
36°
1300mm
04.0018
20W
3000K
1404lm
36°
1300mm
04.0018
20W
4000K
1404lm
36°
1300mm
