PRIMA LUCE
06.4030/06.4031/06.4032

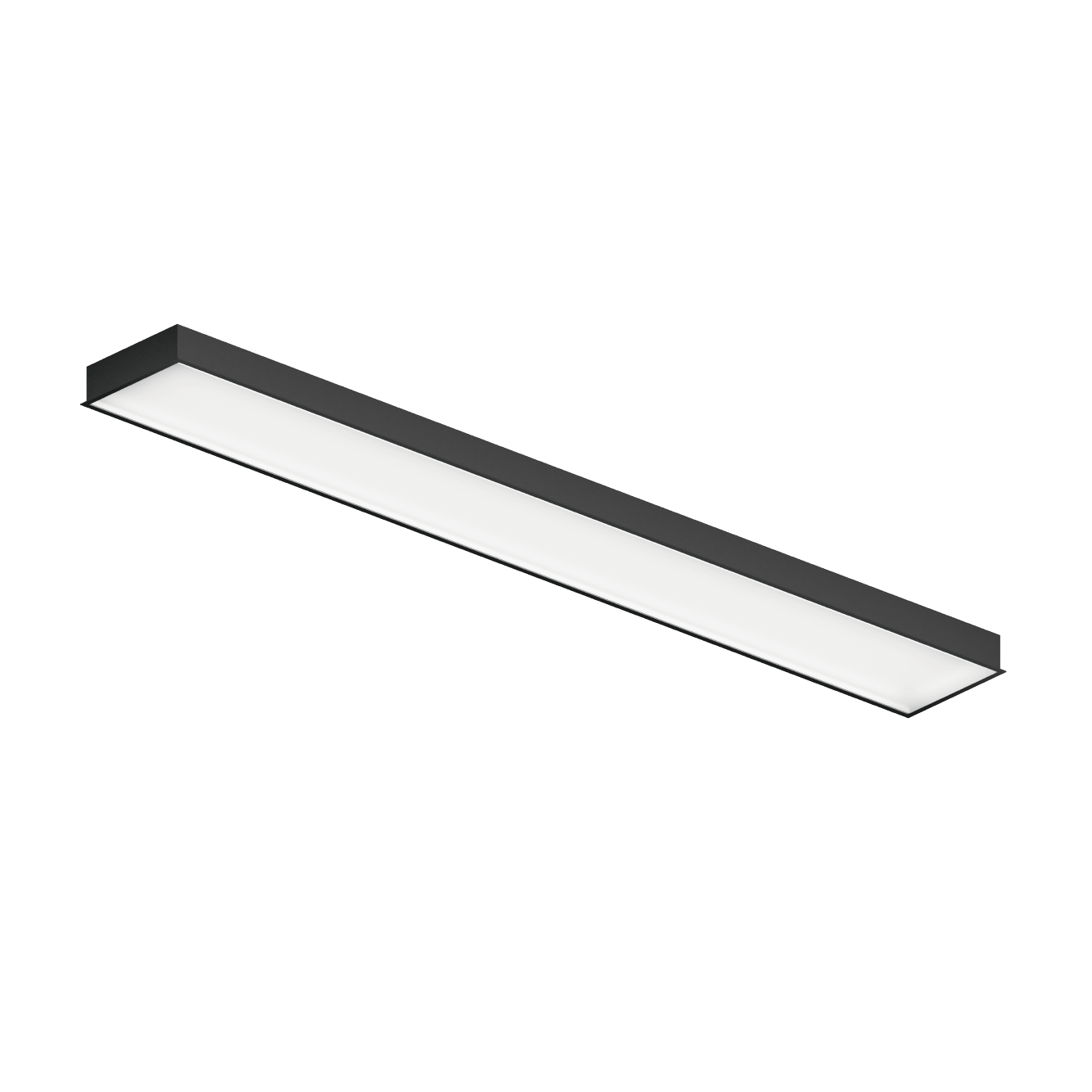

PRIMA LUCE Trim & Square 200

Thanks to the wide range of optics, module sizes and mounting methods (suspension, recessed and surface-mounted solution), all lighting tasks for planar lighting in offices can be solved with the PRIMA LUCE luminaire range. PRIMA LUCE with its wide, uniformly illuminated light emission surface creates outstanding, glare-free light and simultaneously sets visual accents. The light and accessory parts can be combined according to the luminaire's kit principle, enabling solutions for all office and educational areas to be available as standard. This family extremely is all trimless design of future-proof and variable with a solution for modern lighting in offices and educational facilities, it also scores highly for energy efficiency and future capability.

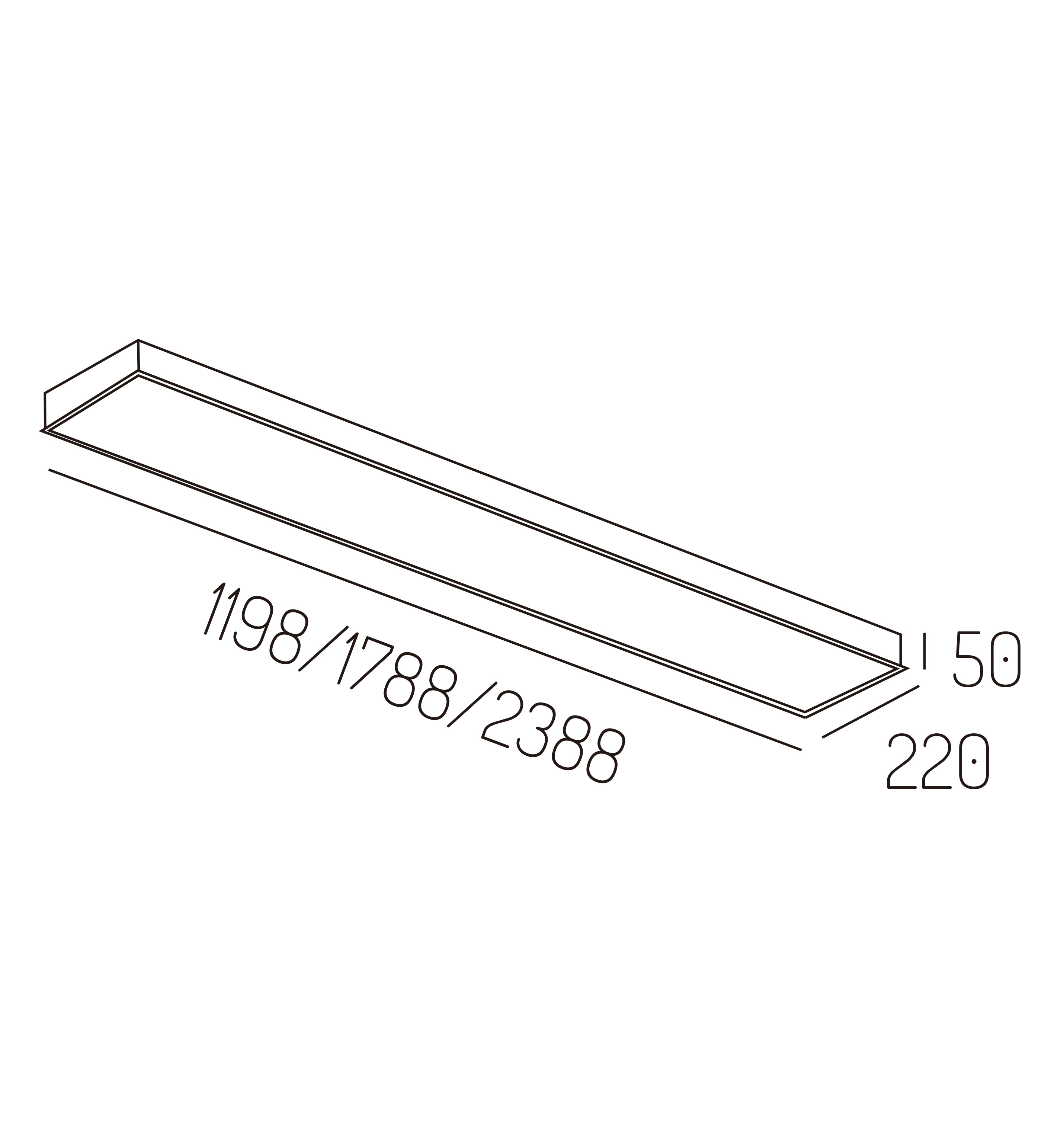

Technical Drawing
product data
  • Fixture Power
    30W/45W/60W
  • Driving Current
    /
  • Lumen Output
    2850lm/4275lm/5700lm
  • Fixture Efficiency
    95.0lm/w
  • CRI
    90
  • Color Temperature
    3000K/4000K/5000K

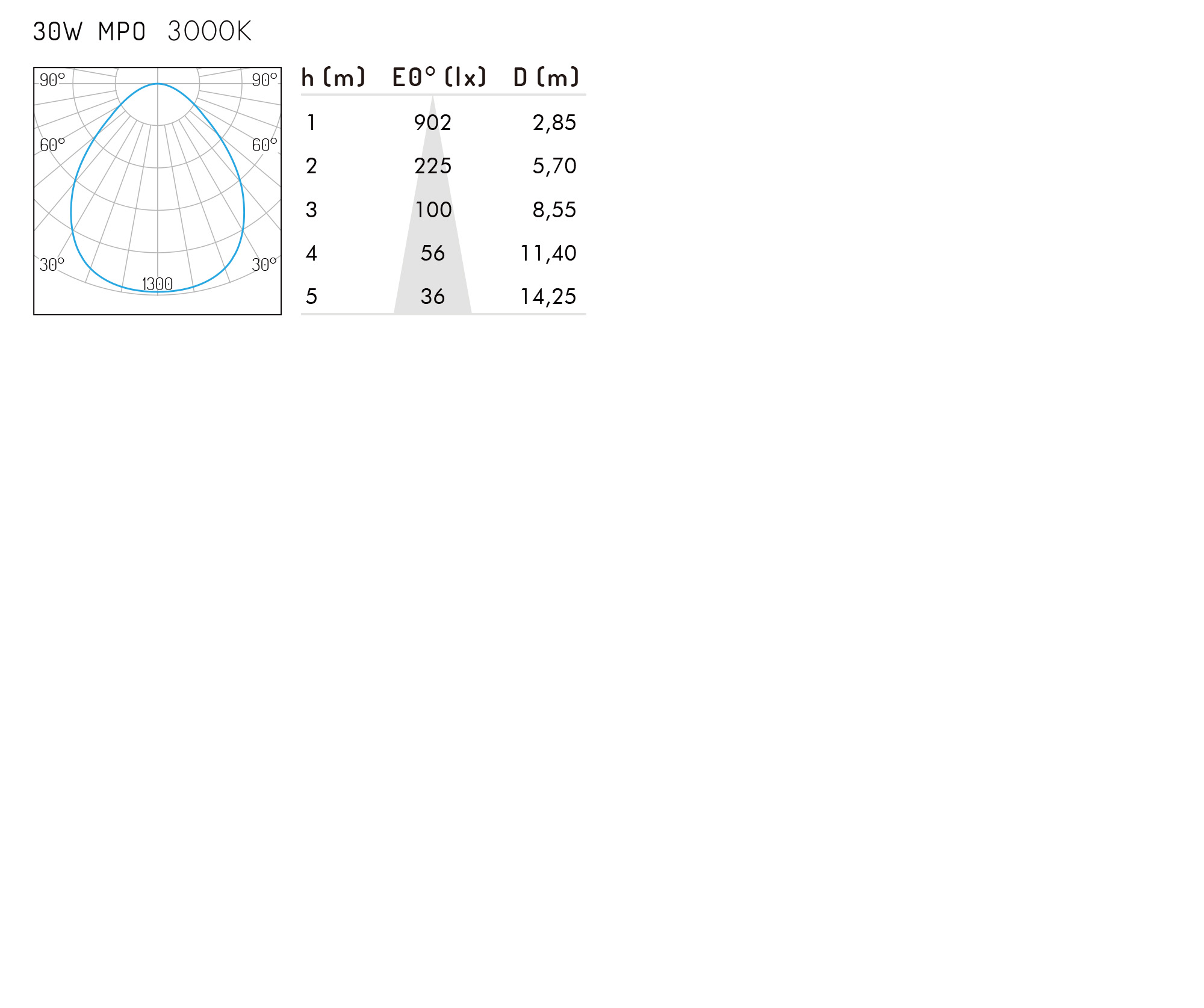

LIGHT DISTRIBUTION
  • Beam Angle
    MPO
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L1198/1788/2388*
    W220*H50mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9005
    Jet Black
    RAL9006
    White Aluminium
    RAL9016
    Traffic White
    RAL1035
    Pearl Beige
Filter codes by
No.
All No.
06.4030
06.4031
06.4032
Power
All Power
30W
45W
60W
Current
All Current
CCT
All CCT
3000K
4000K
5000K
Flux
All Flux
2850lm
4275lm
5700lm
Beam
All Beam
MPO
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
L1198*W220*H50
L1788*W220*H50
L2388*W220*H50
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
06.4030
30W
3000K
2850lm
MPO
L1198*W220*H50
06.4030
30W
4000K
2850lm
MPO
L1198*W220*H50
06.4030
30W
5000K
2850lm
MPO
L1198*W220*H50
06.4031
45W
3000K
4275lm
MPO
L1788*W220*H50
06.4031
45W
4000K
4275lm
MPO
L1788*W220*H50
06.4031
45W
5000K
4275lm
MPO
L1788*W220*H50
06.4032
60W
3000K
5700lm
MPO
L2388*W220*H50
06.4032
60W
4000K
5700lm
MPO
L2388*W220*H50
06.4032
60W
5000K
5700lm
MPO
L2388*W220*H50
