ASTRO
07.0111

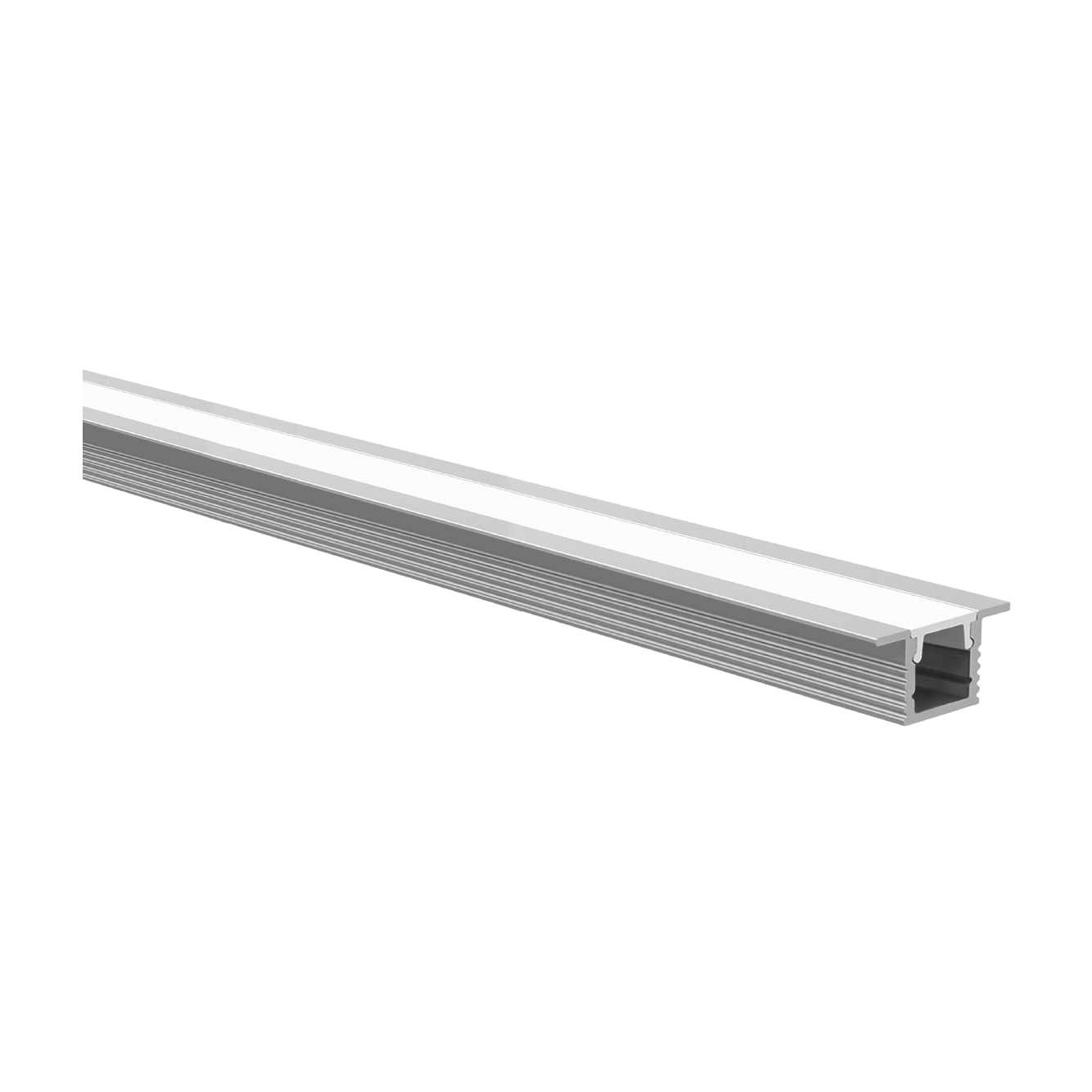

Linear Rigid Lights

The Rigid linear light offers an amazing selection of profile options. Choose from surface mounted or recessed profiles, corner profiles which mount flush to the surface. Our aluminum extrusions come in any length, with a wide variety of mounting options and special optic lenses. Excellent heat sinking keeps everything running cool. Create stunning custom fixtures with your favorite profiles and our premium flexible strip lights. The Astro family are made of Anodised Extruded Aluminium+PMMA materials, increase the luminous surface, make the light output more uniform and soft. Its light distribution technology uses PMMA lampshade to expand the point light source into surface light source, which increase the luminous angle, eliminate glare and visual fatigue. They employ down outgoing line with an unique end cover design, which makes the light glow more softly without dark area so as to realize real seamless splicing.

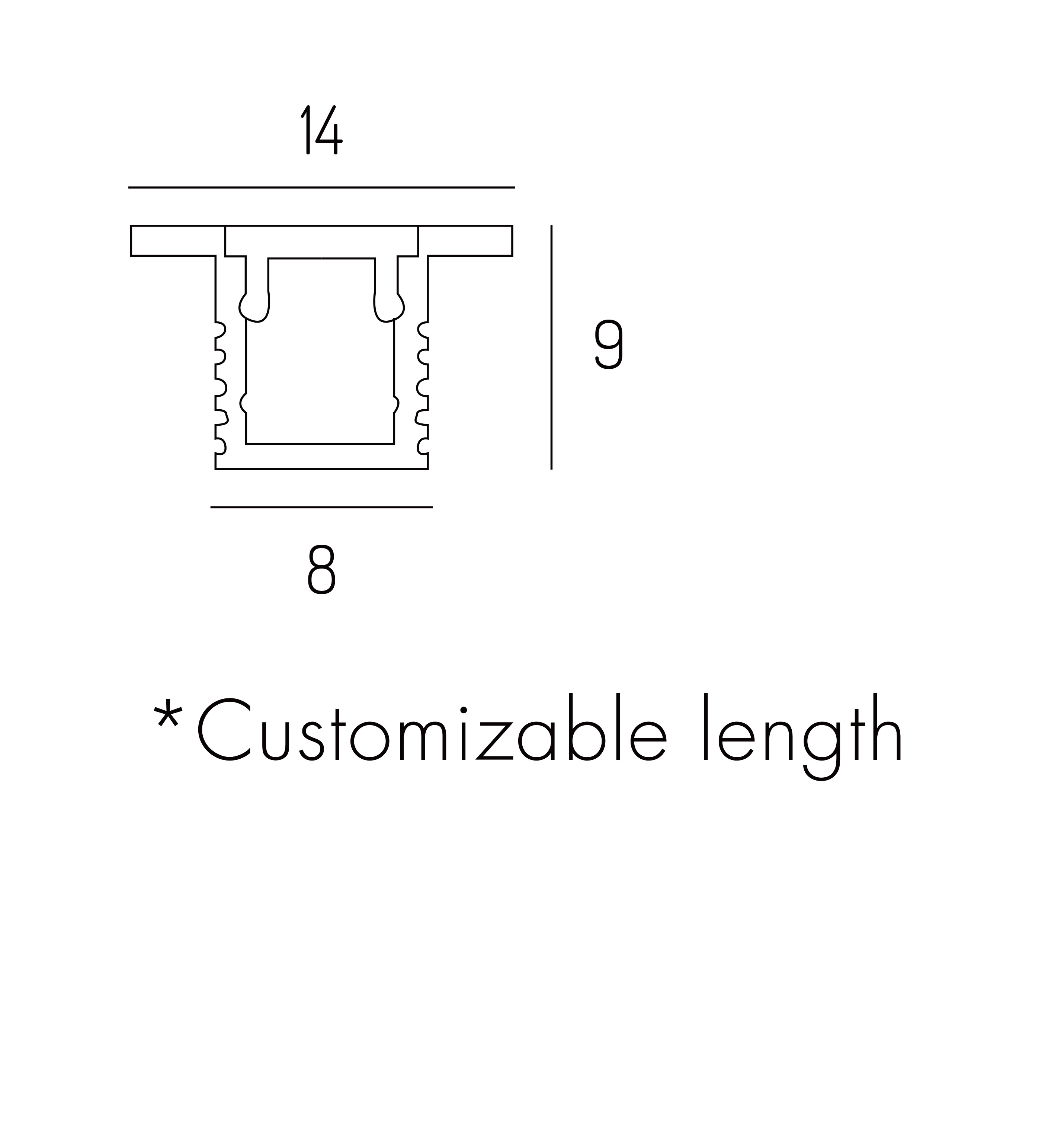

Technical Drawing
product data
  • Fixture Power
    9.6W/m
  • Driving Current
    /
  • Lumen Output
    500lm/m
  • Fixture Efficiency
    52.1lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

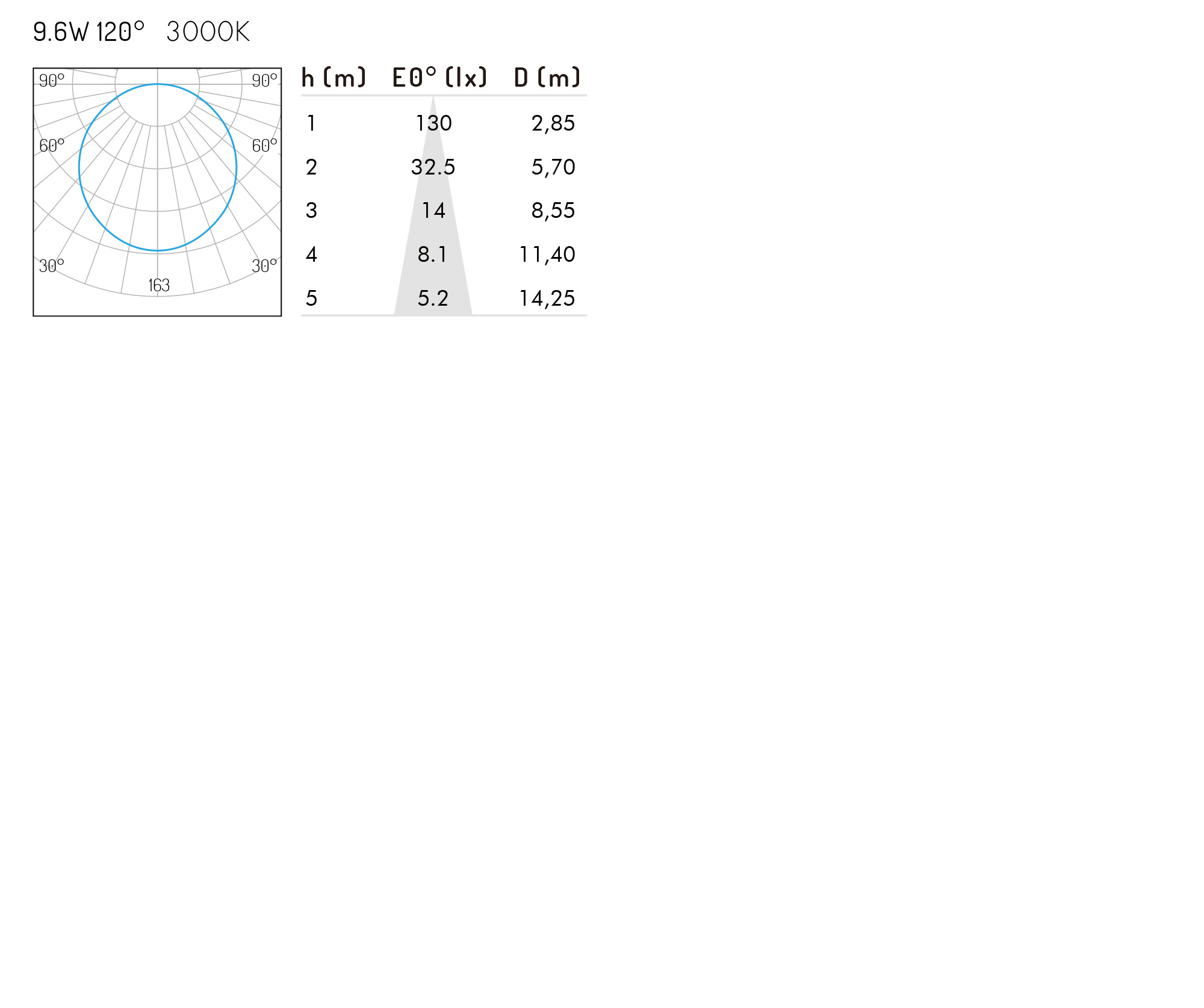

LIGHT DISTRIBUTION
  • Beam Angle
    120°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    Phase-cut Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    W14*H9mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Anodised Extruded Aluminium
  • Housing Color
    /
Filter codes by
No.
All No.
07.0111
Power
All Power
9.6W/m
Current
All Current
CCT
All CCT
2700 K
3000 K
4000 K
Flux
All Flux
500lm/m
Beam
All Beam
120°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
W14*H9mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
07.0111
9.6W/m
2700 K
500lm/m
120°
W14*H9mm
9.6W/m
3000 K
500lm/m
120°
W14*H9mm
9.6W/m
4000 K
500lm/m
120°
W14*H9mm
