AURORA
75.0101

AURORA One 60

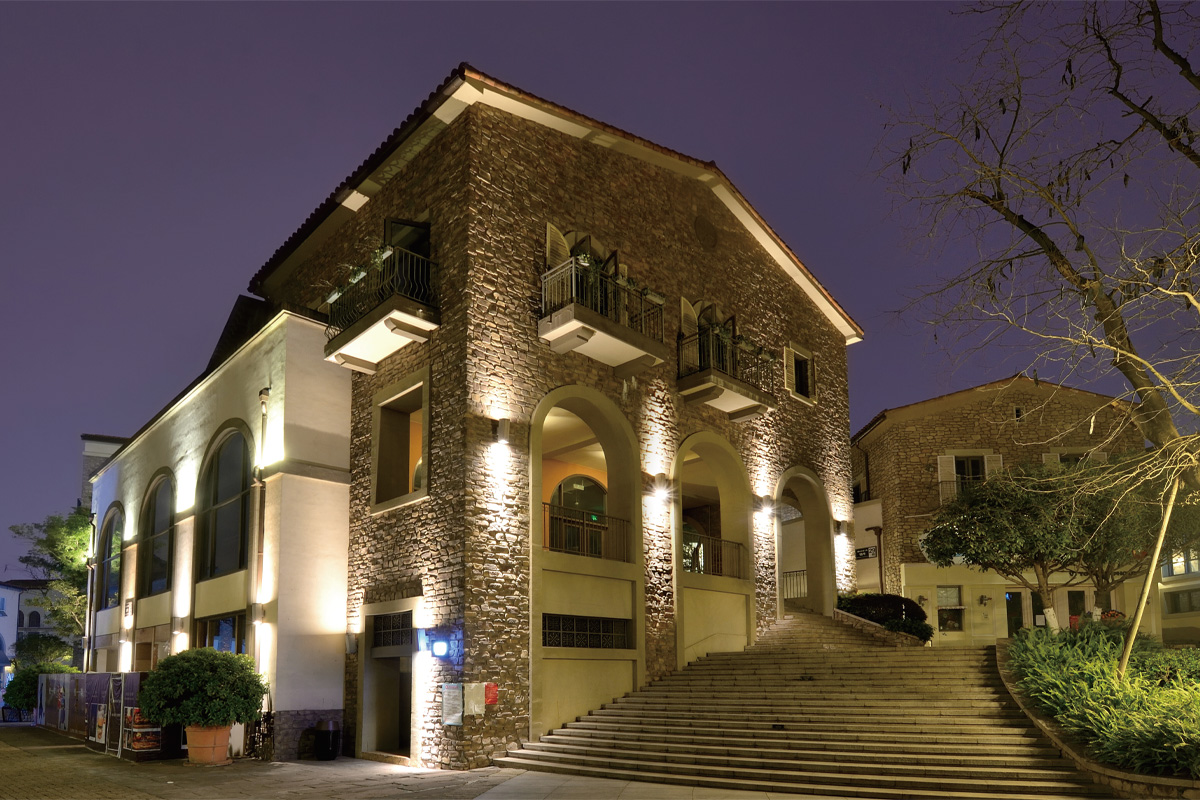

AURORA is the merit of UOZU’s reflector and refractor technology. The precise optics system re-direct the light to generate a well-defined beam shape on wall which is crucial for architectural wall lighting. More than that, the superior anti-glare performance makes AURORA perfect for pathway lighting as well. All of these are packed inside a minimal cylindrical design IP66 housing. The surface treatment makes sure that the light is corrosion-resistant and works without special attention. Four lighting distributions are the foundation of AURORA family limitless beam configuration of a desired perfectly matched AURORA wall light either to illuminate the ground or façade surface details. Light emissions in downward version or upward and downward version to meet different scenarios or height of the buildings.

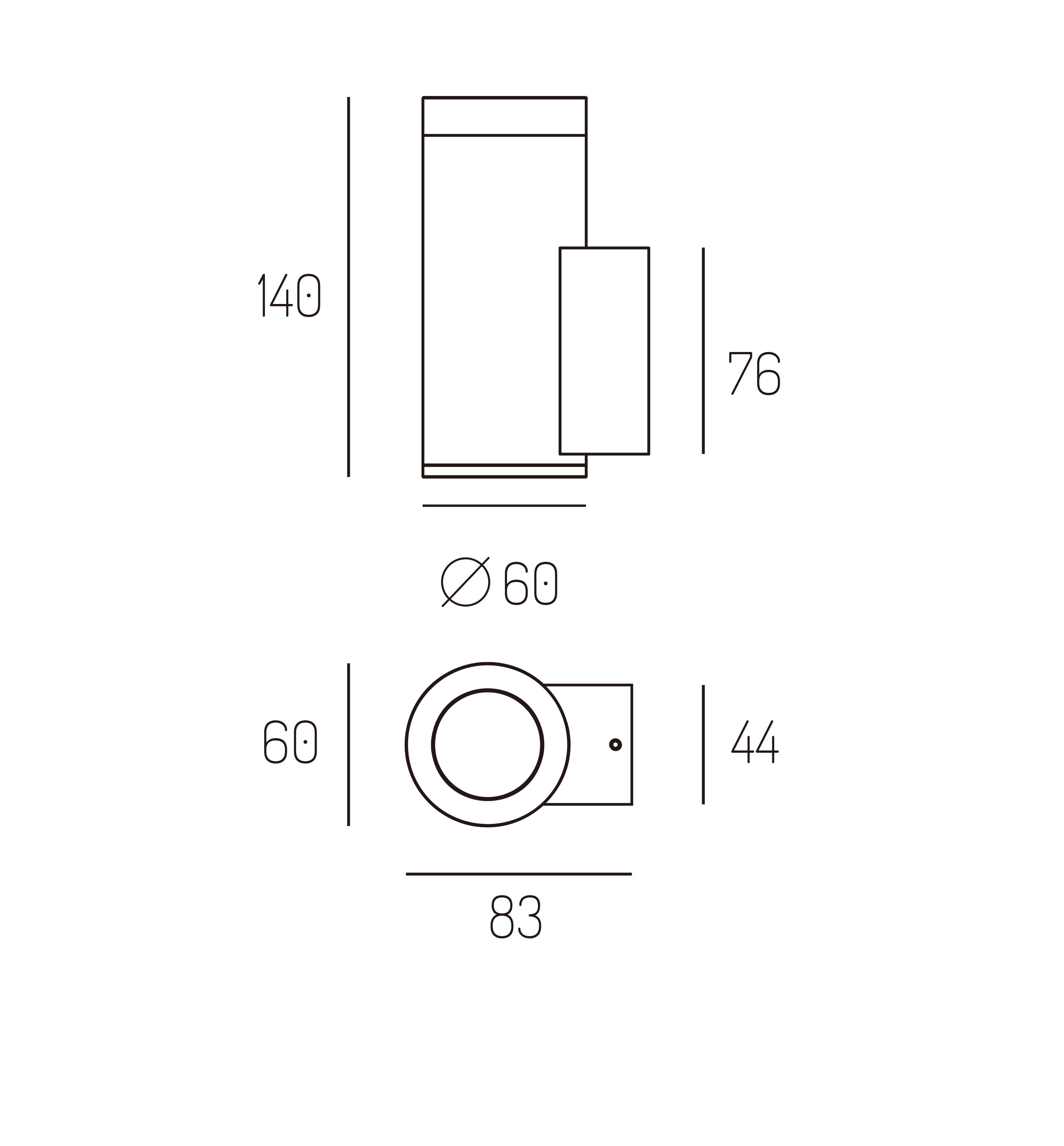

Technical Drawing
product data
  • Fixture Power
    10W
  • Driving Current
    /
  • Lumen Output
    780lm
  • Fixture Efficiency
    78.0lm/w
  • CRI
    90
  • Color Temperature
    2200K/2700K/3000K

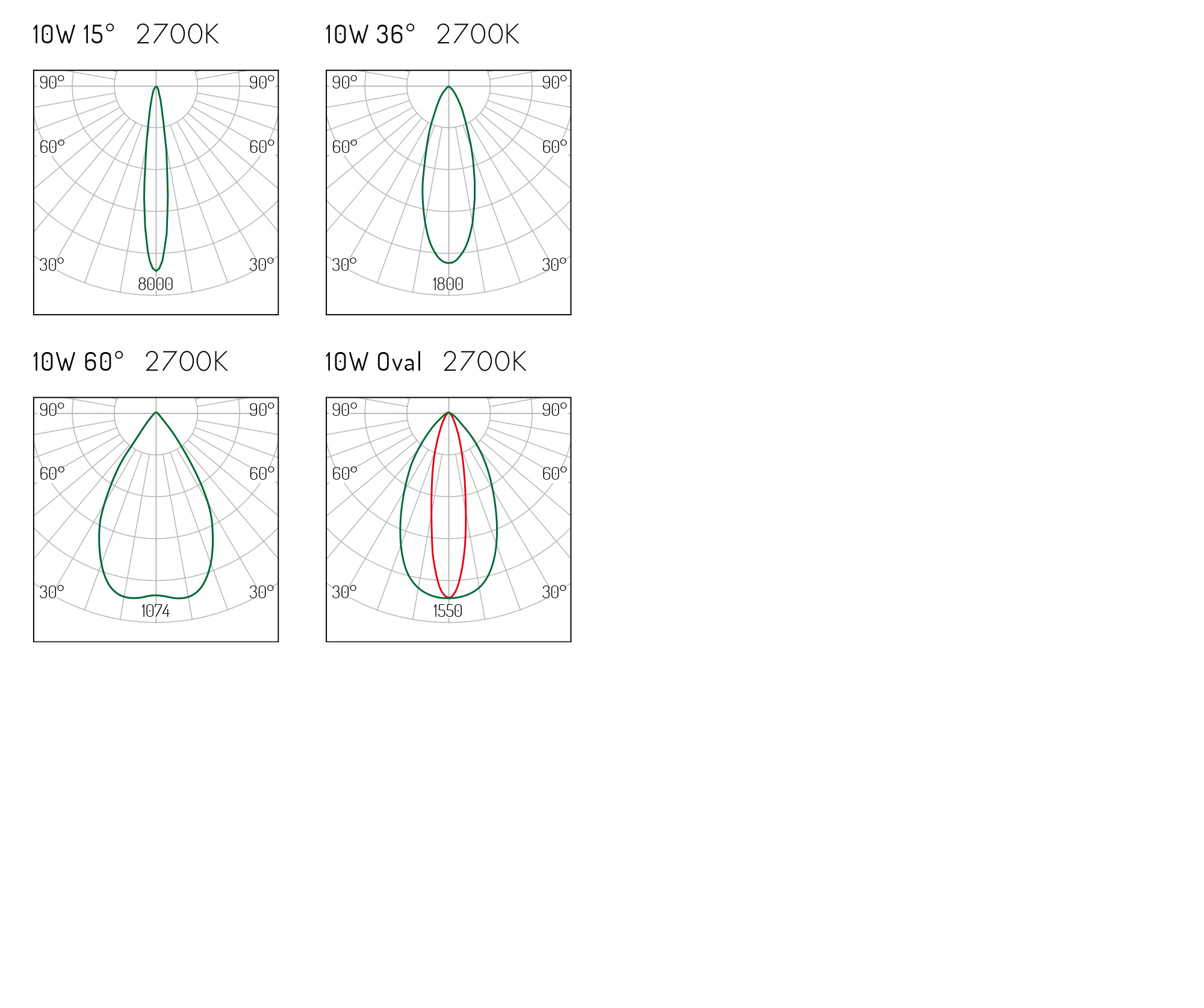

LIGHT DISTRIBUTION
  • Beam Angle
    15°/36°/60°/Oval
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    D60*H140mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP66
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9006
    White Aluminium
    RAL9016
    Traffic White
    RAL9005
    Jet Black
Filter codes by
No.
All No.
Power
All Power
10W
Current
All Current
CCT
All CCT
2200K
2700K
3000K
Flux
All Flux
780lm
Beam
All Beam
15°
36°
60°
Oval
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
D60*H140mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
10W
2200K
780lm
15°
D60*H140mm
10W
2700K
780lm
15°
D60*H140mm
10W
3000K
780lm
15°
D60*H140mm
10W
2200K
780lm
36°
D60*H140mm
10W
2700K
780lm
36°
D60*H140mm
10W
3000K
780lm
36°
D60*H140mm
10W
2200K
780lm
60°
D60*H140mm
10W
2700K
780lm
60°
D60*H140mm
10W
3000K
780lm
60°
D60*H140mm
10W
2200K
780lm
Oval
D60*H140mm
10W
2700K
780lm
Oval
D60*H140mm
10W
3000K
780lm
Oval
D60*H140mm
