OTTONE
02.1003

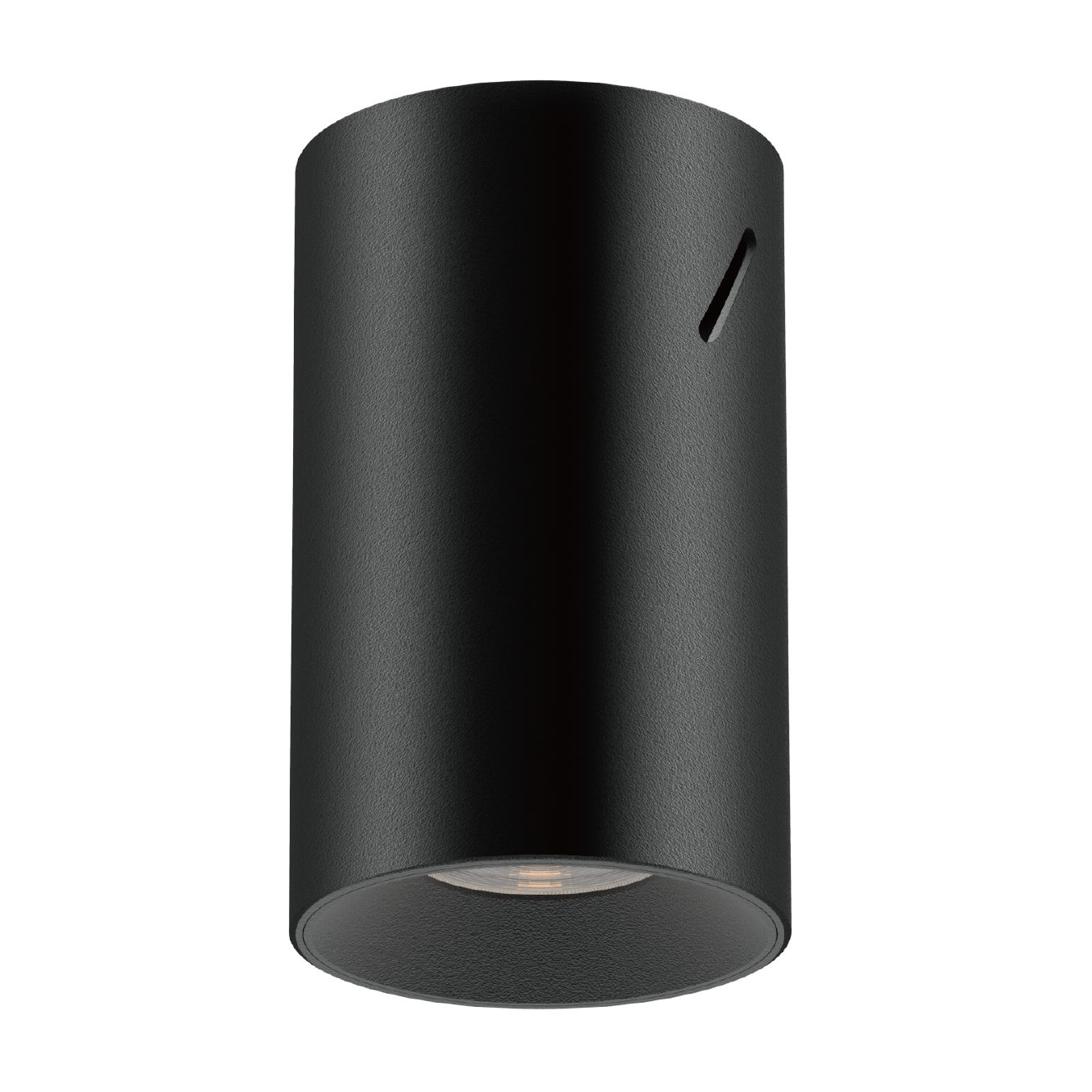

OTTONE Fixed- Round 80

Dafne & Ottone surface-mounted lighting series are made of aluminum alloy and treated by powder coating. They possess an elegant and minimalistic appearance which can be fully integrated with contemporary interior design. These products employ the newest generation of high-performance LED chips, thus achieving a low heat resistance and high lighting efficiency They possess highly accurate optics and reflectors and an anti-glare technology. They can be adapt to a variety of scenarios such as residential, office, retail store and other commercial spaces. The industrial design of Dafne and Ottone series is derived from our brand elements. The U-shaped architectural element representing the soul of Uozu is derived from the iconic rialto Bridge in Venice, Italy. This unique design can be traced in other Uozu product series. The second is the auxiliary graphic elements extracted from the letter "Z", which is also the most systematic symbol of Uozu visual identification system. The superimposed design of architectural elements and brand elements is the most eye-catching part of these two product series.

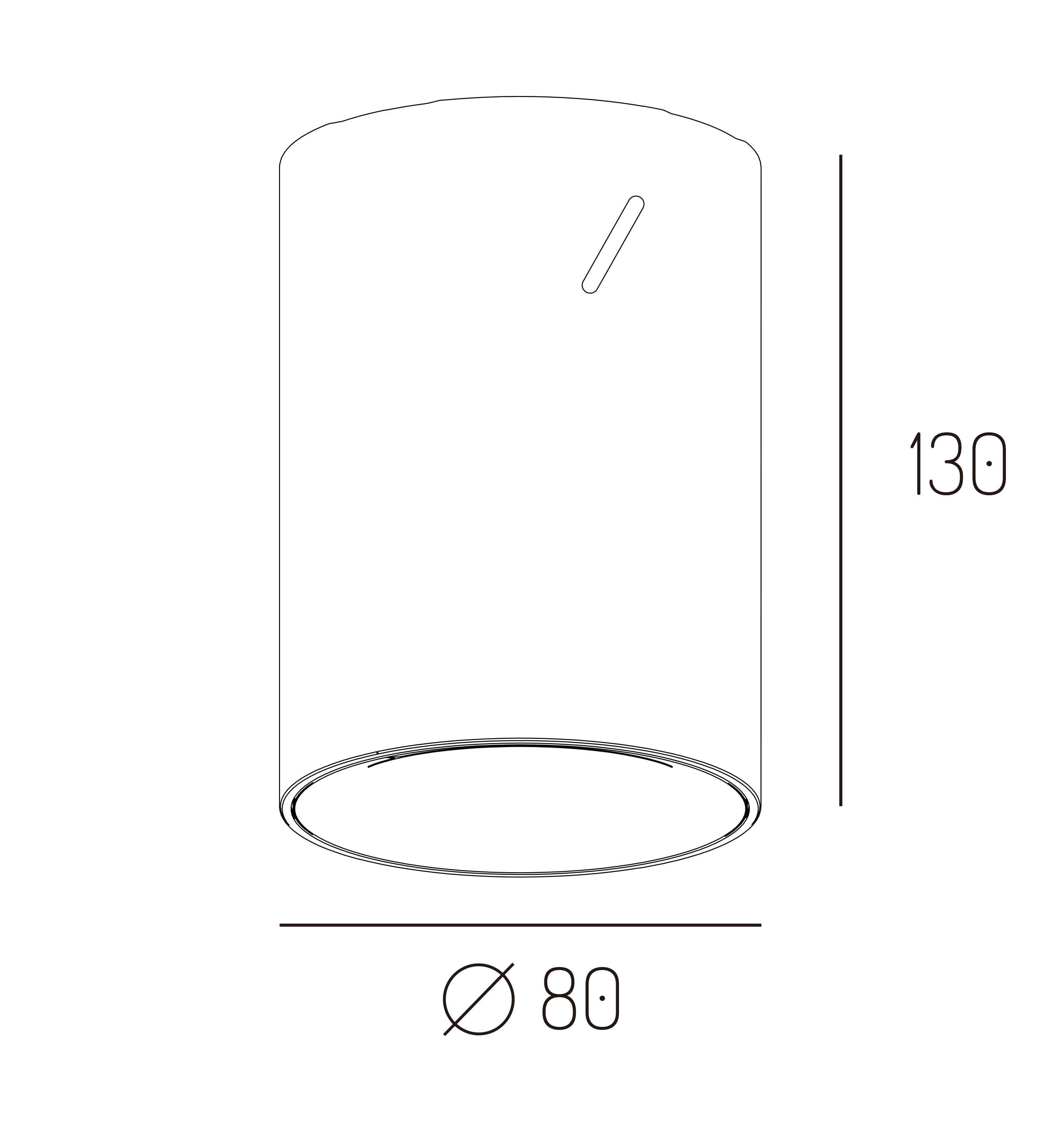

Technical Drawing
product data
  • Fixture Power
    10W/15W/20W
  • Driving Current
    250mA/350mA/500mA
  • Lumen Output
    720lm/1011lm/1404lm
  • Fixture Efficiency
    72.0lm/w
    67.4lm/w
    70.2lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

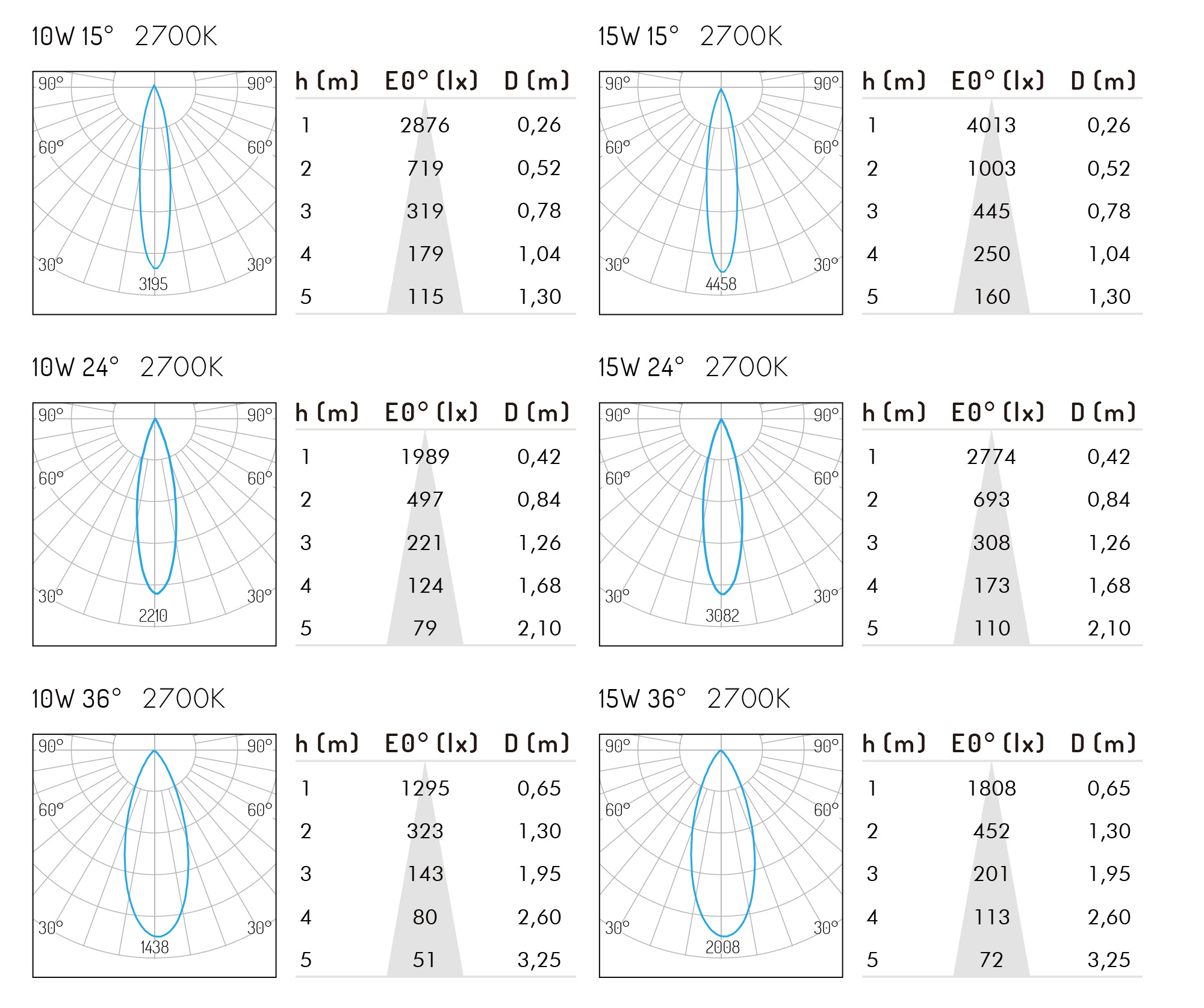

LIGHT DISTRIBUTION
  • Beam Angle
    15°/24°/36°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    Phase-cut Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    Ø80*H130mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Die-cast Aluminium
  • Housing Color
    RAL9016
    Traffic White
    RAL9005
    Jet Black
    RAL9006
    White Aluminium
Filter codes by
No.
All No.
Power
All Power
10W
15W
20W
Current
All Current
250mA
350mA
500mA
CCT
All CCT
2700K
3000K
4000K
Flux
All Flux
1011lm
1404lm
720lm
Beam
All Beam
15°
24°
36°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
10W
250mA
2700K
720lm
15°
10W
250mA
3000K
720lm
15°
10W
250mA
4000K
720lm
15°
10W
250mA
2700K
720lm
24°
10W
250mA
3000K
720lm
24°
10W
250mA
4000K
720lm
24°
10W
250mA
2700K
720lm
36°
10W
250mA
3000K
720lm
36°
10W
250mA
4000K
720lm
36°
15W
350mA
2700K
1011lm
15°
15W
350mA
3000K
1011lm
15°
15W
350mA
4000K
1011lm
15°
15W
350mA
2700K
1011lm
24°
15W
350mA
3000K
1011lm
24°
15W
350mA
4000K
1011lm
24°
15W
350mA
2700K
1011lm
36°
15W
350mA
3000K
1011lm
36°
15W
350mA
4000K
1011lm
36°
20W
500mA
2700K
1404lm
15°
20W
500mA
3000K
1404lm
15°
20W
500mA
4000K
1404lm
15°
20W
500mA
2700K
1404lm
24°
20W
500mA
3000K
1404lm
24°
20W
500mA
4000K
1404lm
24°
20W
500mA
2700K
1404lm
36°
20W
500mA
3000K
1404lm
36°
20W
500mA
4000K
1404lm
36°
