COSMO
03.0011

COSMO-50

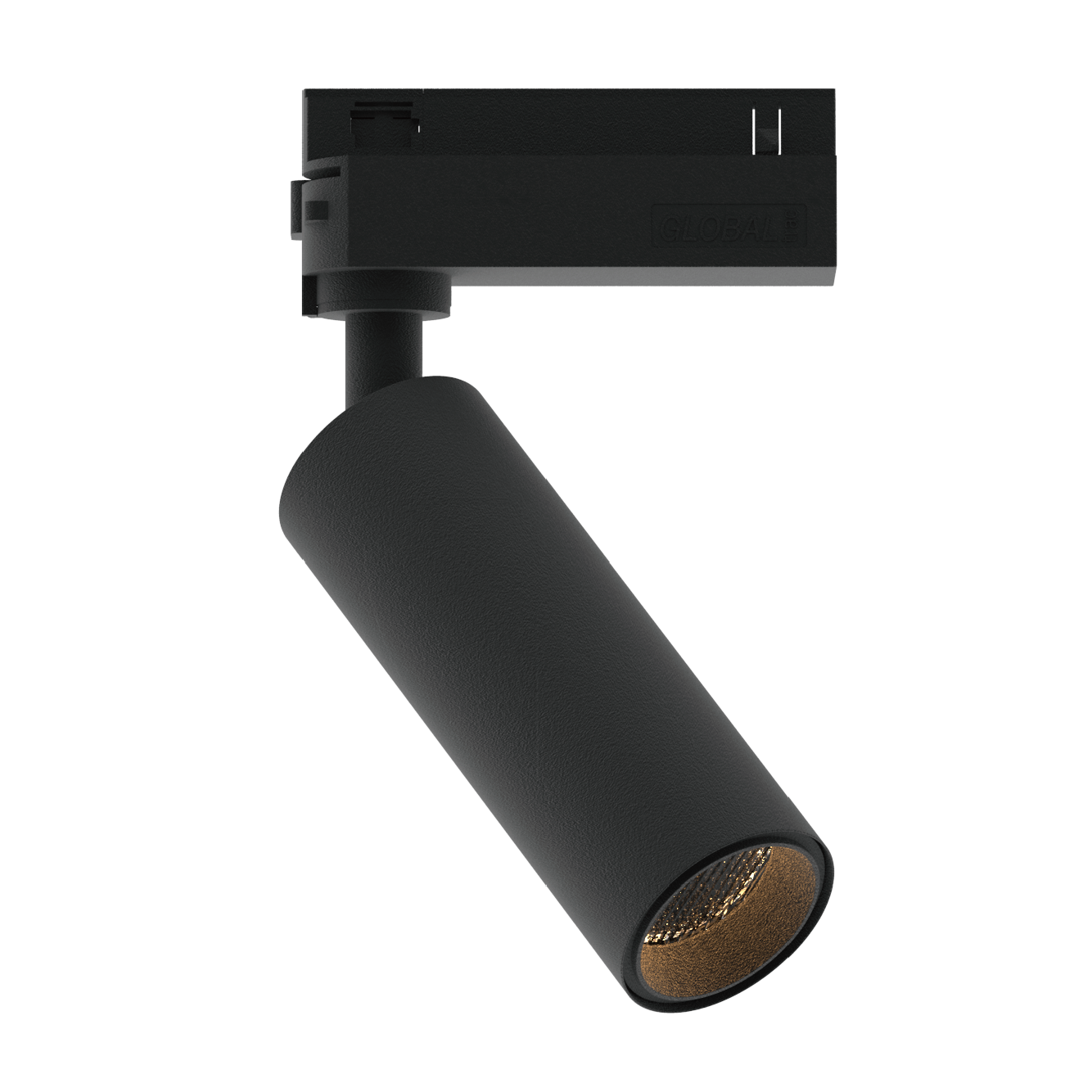

The Cosmo family is a heterogeneous group of spotlights for interior spaces available in varied sizes and characteristics. The spotlights are composed by a cylindrical aluminum housing in black or white colors in three sizes. The spotlights are designed to include three interchangeable reflector or lens in order to obtain different focal openings according to different needs, which can guarantee flexibility and customization. In addition, the dimming system can also create different lighting application, such as residential, private clubs, offices, retail and other commercial spaces.

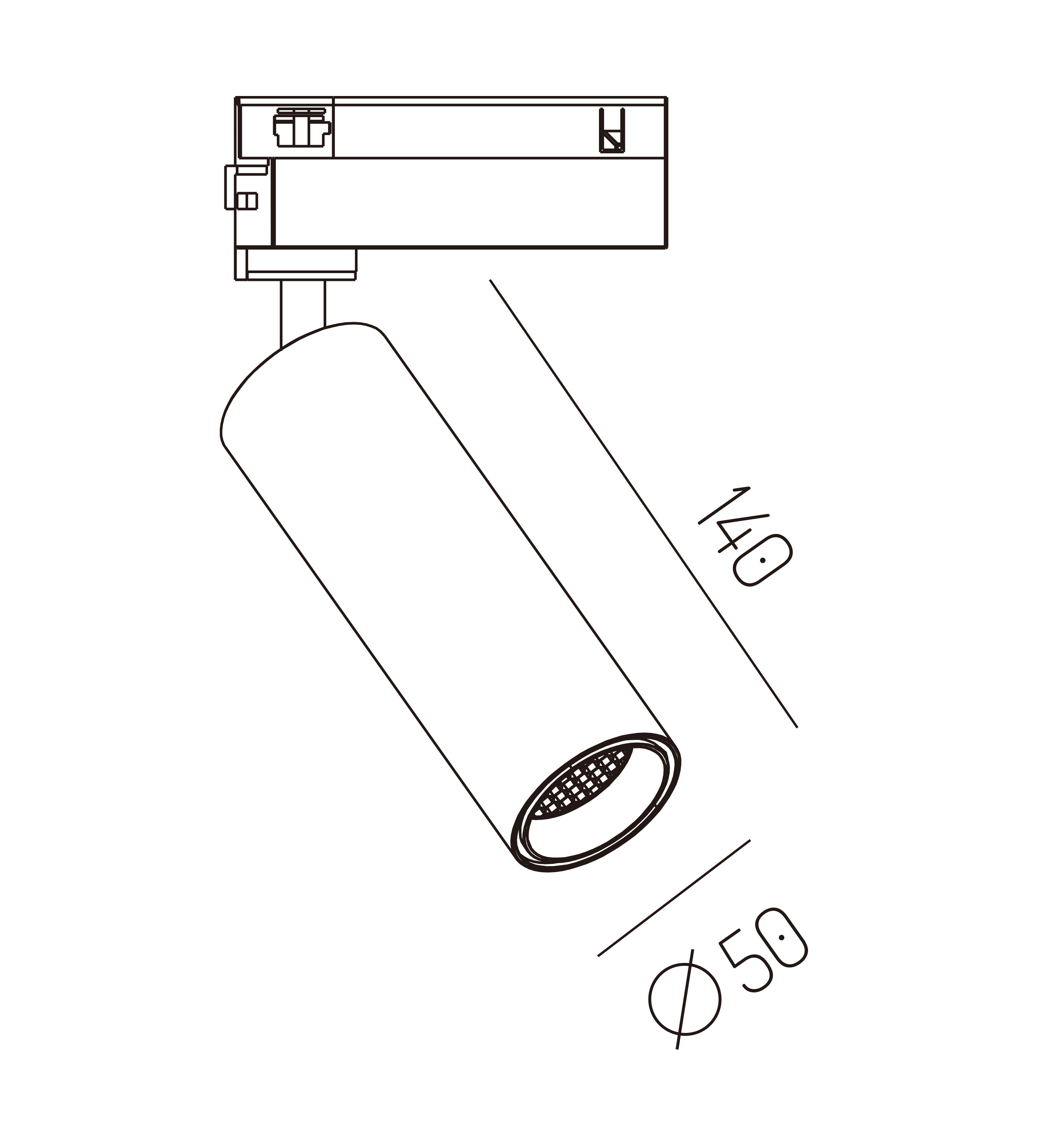

Technical Drawing
product data
  • Fixture Power
    15W
  • Driving Current
    350mA
  • Lumen Output
    1060lm
  • Fixture Efficiency
    70.6lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

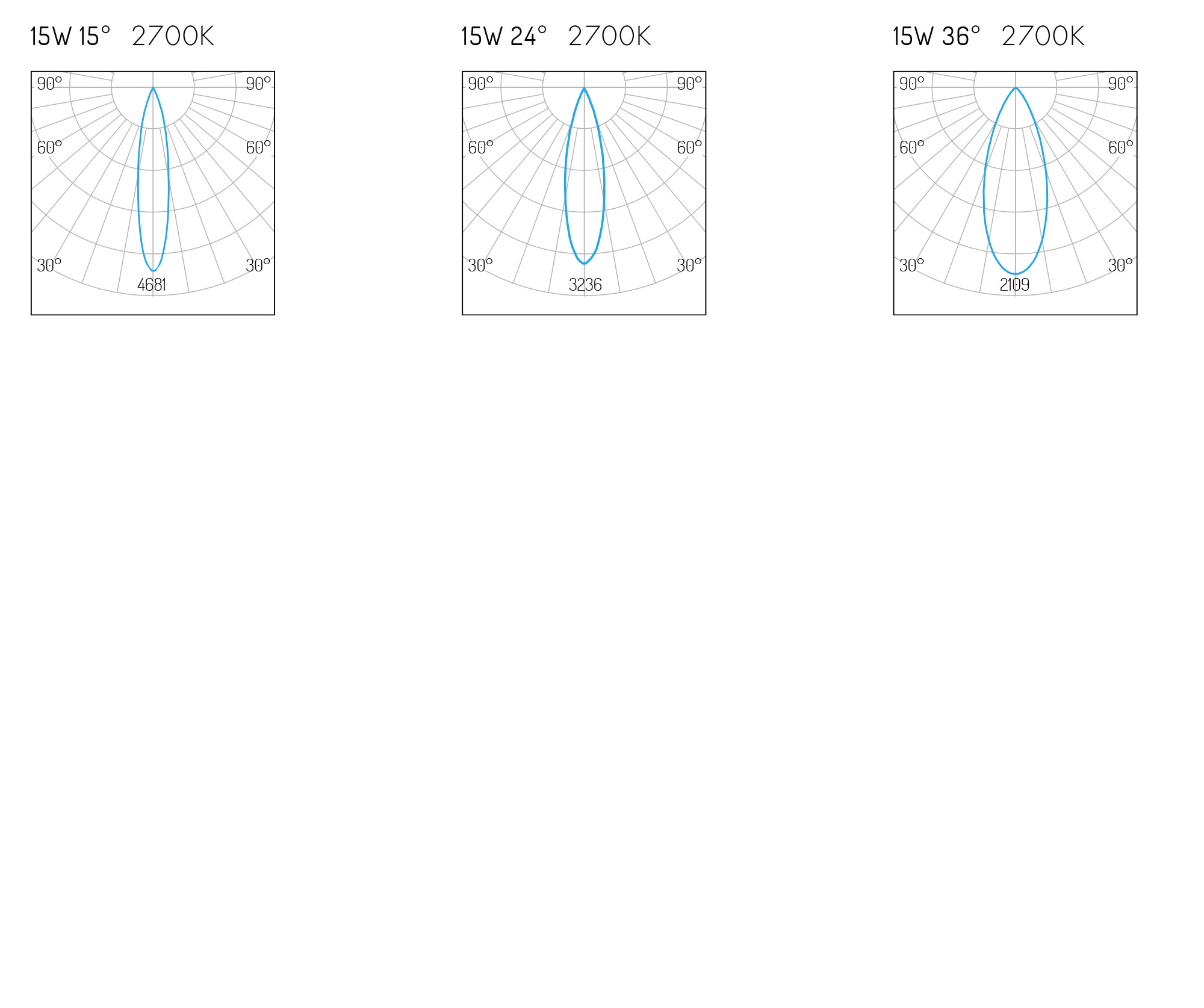

LIGHT DISTRIBUTION
  • Beam Angle
    15°/24°/36°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    Phase-cut Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    Ø50*H140mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9016
    Traffic White
    RAL9005
    Jet Black
    RAL9006
    White Aluminium
Filter codes by
No.
All No.
Power
All Power
15W
Current
All Current
350mA
CCT
All CCT
2700K
3000K
4000K
Flux
All Flux
1060lm
Beam
All Beam
15°
24°
36°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
15W
350mA
2700K
1060lm
15°
Specifications Installation instructions IES
15W
350mA
3000K
1060lm
15°
Specifications Installation instructions IES
15W
350mA
4000K
1060lm
15°
Specifications Installation instructions IES
15W
350mA
2700K
1060lm
24°
Specifications Installation instructions IES
15W
350mA
3000K
1060lm
24°
Specifications Installation instructions IES
15W
350mA
4000K
1060lm
24°
Specifications Installation instructions IES
15W
350mA
2700K
1060lm
36°
Specifications Installation instructions IES
15W
350mA
3000K
1060lm
36°
Specifications Installation instructions IES
15W
350mA
4000K
1060lm
36°
Specifications Installation instructions IES
