CASSIOPEA
70.1030/70.1031/70.1032/70.1033

CASSIOPEA 50-Tunable White

The Cassiopea family includes a group of wall washers for outdoor spaces. They have a body of light aluminum with powder coating and a pre-treatment for outdoor use, clear glass, and a silicon rubber gasket. They have an IP66 rating and employ the newest generation of light sources, thus achieving a low heat resistance and high lighting efficiency. They are available in a variely of color temperatures and different body colors.

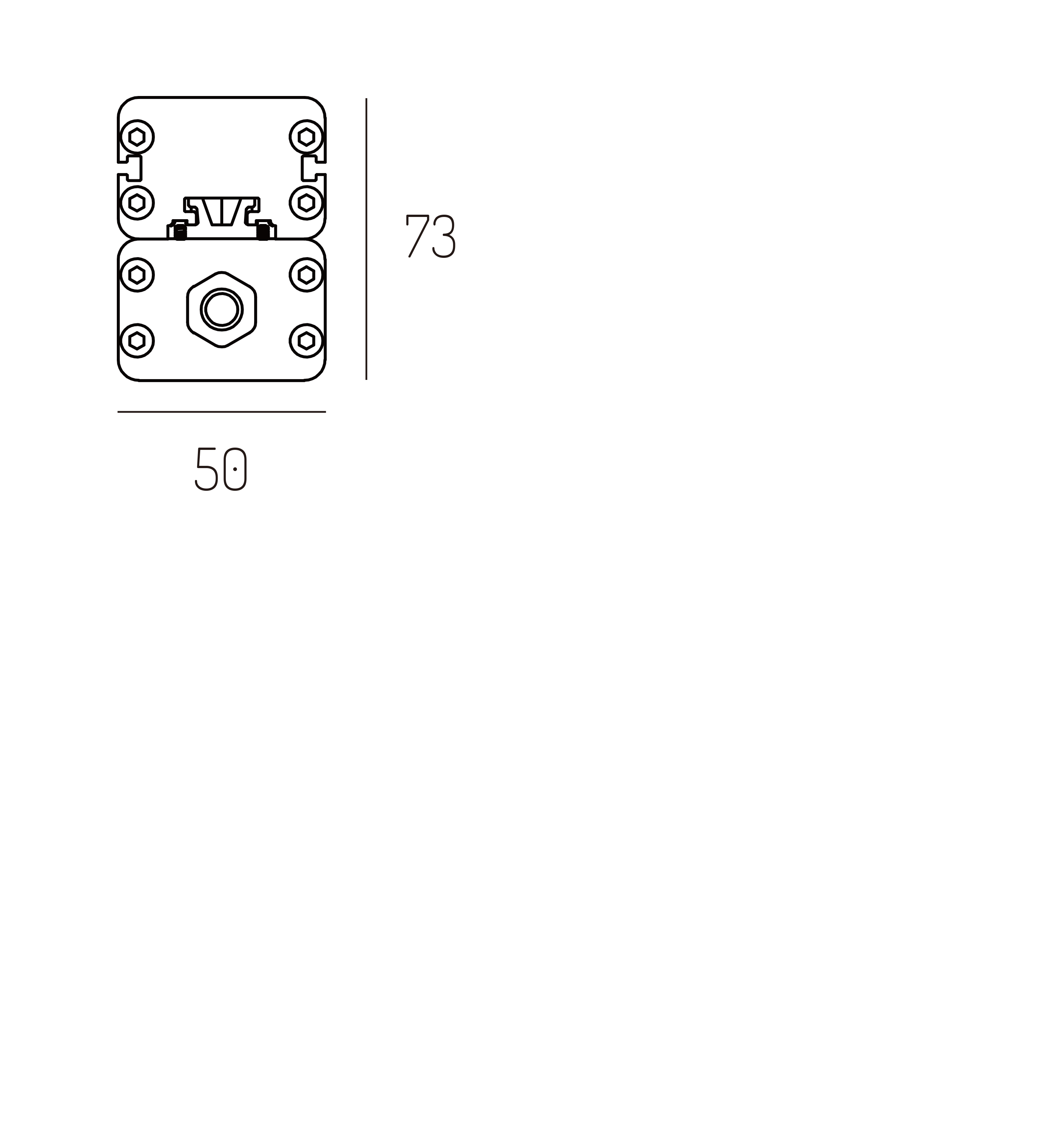

Technical Drawing
product data
  • Fixture Power
    15W/30W/45W/60W
  • Driving Current
    /
  • Lumen Output
    1350lm/2700lm
    4050lm/5400lm
  • Fixture Efficiency
    90.0lm/w
  • CRI
    90
  • Color Temperature
    2700K~6500K

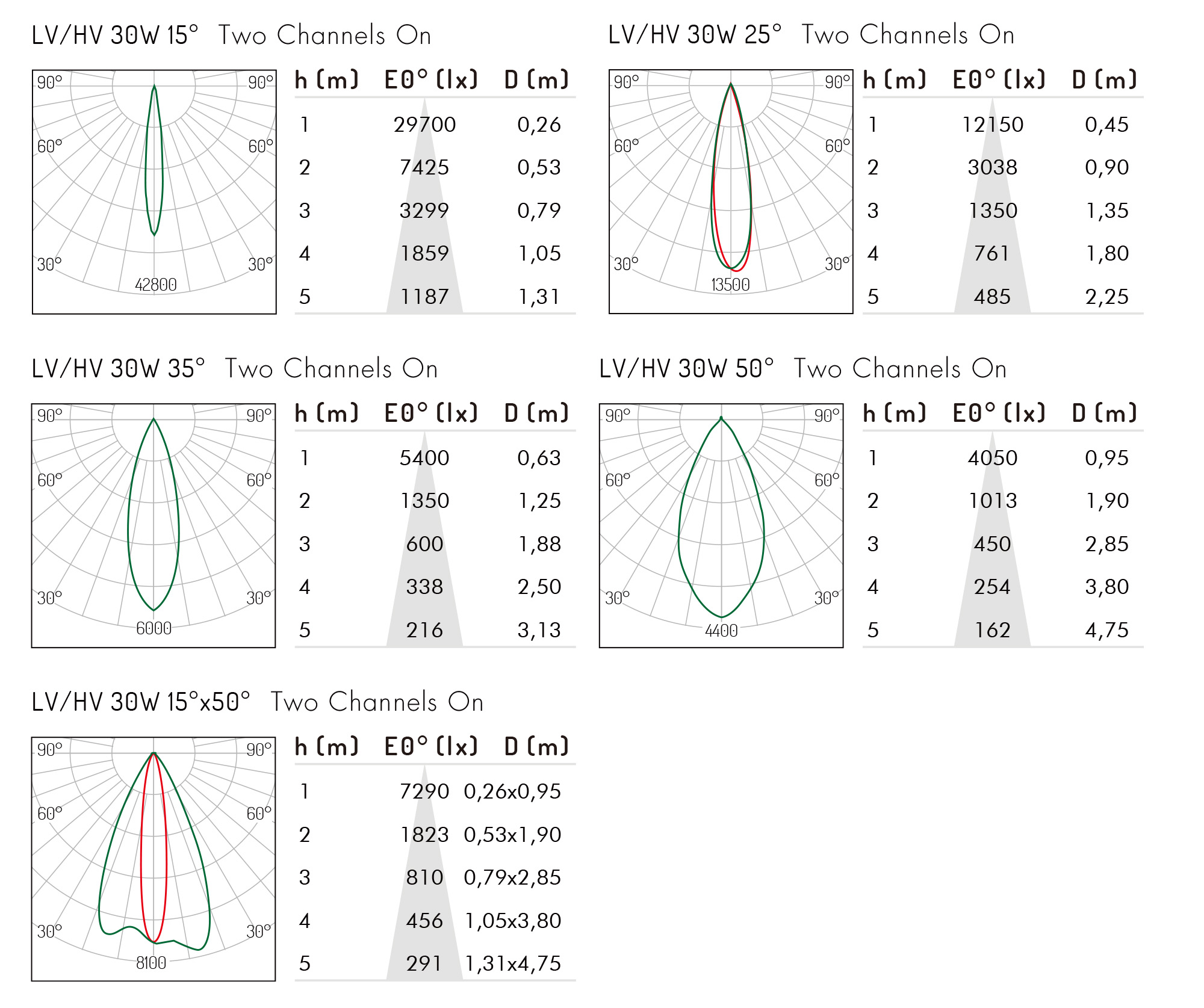

LIGHT DISTRIBUTION
  • Beam Angle
    15°/25°/35°
    50°/15°*50°
  • Source Type
    Citizen COB LED
  • Control Method
    DMX512
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L313/605/900/1190*
    W50*H73mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP66
  • IK Rating
    IK08
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9001
    Cream
    RAL9006
    White Aluminium
    RAL9011
    Graphite Black
    Anodised Charcoal Grey
Optical Accessories
Mounting Accessories
Filter codes by
No.
All No.
70.1030
70.1031
70.1032
70.1033
Power
All Power
15W
30W
45W
60W
Current
All Current
CCT
All CCT
2700K~6500K
Flux
All Flux
1350lm
2700lm
4050lm
5400lm5400lmv
Beam
All Beam
15°
15°*50°
25°
35°
50°
Length
All Length
1190mm
313mm
605mm
900mm
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
70.1030
15W
2700K~6500K
1350lm
15°
313mm
70.1030
15W
2700K~6500K
1350lm
25°
313mm
70.1030
15W
2700K~6500K
1350lm
35°
313mm
70.1030
15W
2700K~6500K
1350lm
50°
313mm
70.1030
15W
2700K~6500K
1350lm
15°*50°
313mm
70.1031
30W
2700K~6500K
2700lm
15°
605mm
70.1031
30W
2700K~6500K
2700lm
25°
605mm
70.1031
30W
2700K~6500K
2700lm
35°
605mm
70.1031
30W
2700K~6500K
2700lm
50°
605mm
70.1031
30W
2700K~6500K
2700lm
15°*50°
605mm
70.1032
45W
2700K~6500K
4050lm
15°
900mm
70.1032
45W
2700K~6500K
4050lm
25°
900mm
70.1032
45W
2700K~6500K
4050lm
35°
900mm
70.1032
45W
2700K~6500K
4050lm
50°
900mm
70.1032
45W
2700K~6500K
4050lm
15°*50°
900mm
70.1033
60W
2700K~6500K
5400lm5400lmv
15°
1190mm
70.1033
60W
2700K~6500K
5400lm5400lmv
25°
1190mm
70.1033
60W
2700K~6500K
5400lm5400lmv
35°
1190mm
70.1033
60W
2700K~6500K
5400lm5400lmv
50°
1190mm
70.1033
60W
2700K~6500K
5400lm5400lmv
15°*50°
1190mm
