CASSIOPEA 36<br>White

CASSIOPEA

70.0010/70.0011/70.0012

CASSIOPEA 36-White

The Cassiopea family includes a group of wall washers for outdoor spaces. They have a body of light aluminum with powder coating and a pre-treatment for outdoor use, clear glass, and a silicon rubber gasket. They have an IP66 rating and employ the newest generation of light sources, thus achieving a low heat resistance and high lighting efficiency. They are available in a variely of color temperatures and different body colors.

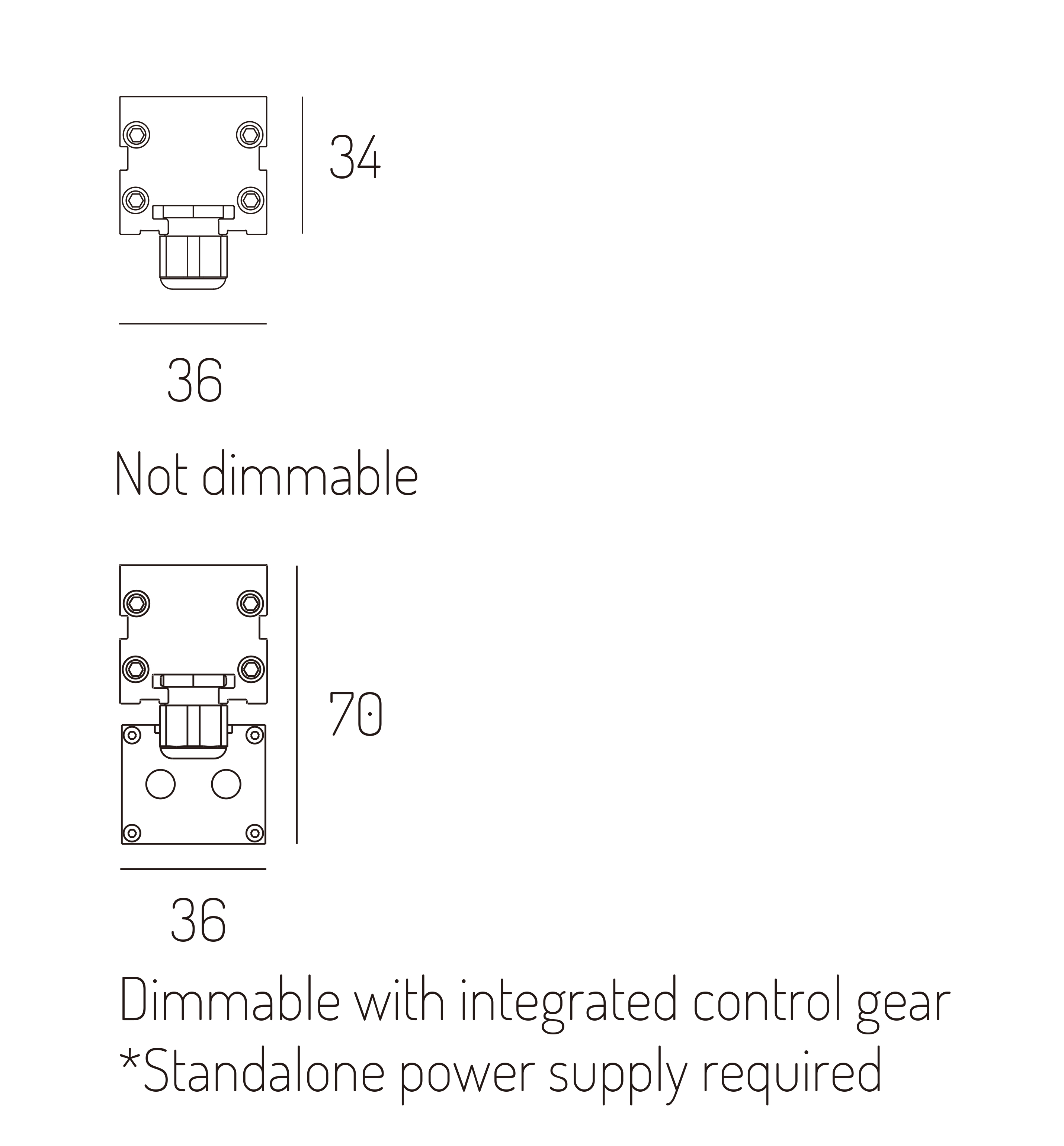

Technical Drawing

product data

Fixture Power
6W/12W/24W
Driving Current
/
Lumen Output
540lm/1080lm/2160lm
Fixture Efficiency
90.0lm/w
CRI
90
Color Temperature
2700K/3000K/4000K

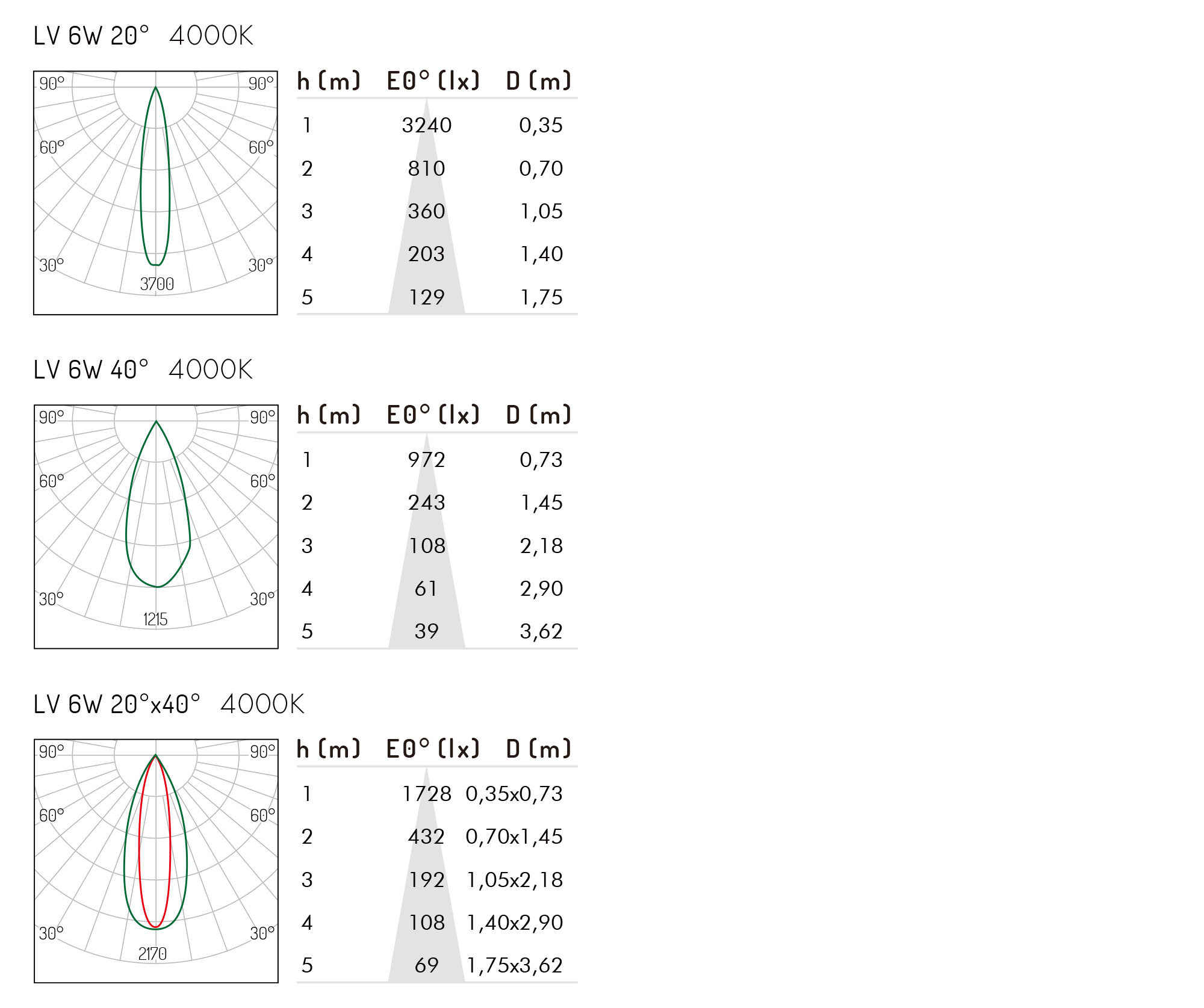

LIGHT DISTRIBUTION

Beam Angle
20°/40°/20°*40°
Source Type
Citizen COB LED
Control Method
Not Dimmable
DMX 512
MacAdam Ellipse
<3 SDCM
Product Dimensions
L260/500/1000*
W36*H34/70mm
Hole Size
/
Weight
/
IP Rating
IP66
IK Rating
IK08
Housing Material
Extruded Aluminium
Housing Color
RAL9001
Cream
RAL9006
White Aluminium
RAL9011
Graphite Black
Anodised Charcoal Grey

Optical Accessories

Mounting Accessories

Filter codes by

No.

All No.

70.0010

70.0011

70.0012

Power

All Power

12W

24W

Current

All Current

CCT

All CCT

2700 K

3000 K

4000 K

Flux

All Flux

1080lm

2160lm

540lm

Beam

All Beam

20°

20°*40°

40°

Length

All Length

1000mm

260mm

500mm

LED Qty.

All LED Qty.

Cut out

All Cut out

Size

All Size

Type

All Type

Voltage

All Voltage

No.

Power

Current

CCT

Flux

Beam

Length

LED Qty.

Cut out

Size

Type

Voltage

70.0010

2700 K

540lm

20°

260mm

70.0010

2700 K

540lm

40°

260mm

70.0010

2700 K

540lm

20°*40°

260mm

70.0010

3000 K

540lm

20°

260mm

70.0010

3000 K

540lm

40°

260mm

70.0010

3000 K

540lm

20°*40°

260mm

70.0010

4000 K

540lm

20°

260mm

70.0010

4000 K

540lm

40°

260mm

70.0010

4000 K

540lm

20°*40°

260mm

70.0011

12W

2700 K

1080lm

20°

500mm

70.0011

12W

2700 K

1080lm

40°

500mm

70.0011

12W

2700 K

1080lm

20°*40°

500mm

70.0011

12W

3000 K

1080lm

20°

500mm

70.0011

12W

3000 K

1080lm

40°

500mm

70.0011

12W

3000 K

1080lm

20°*40°

500mm

70.0011

12W

4000 K

1080lm

20°

500mm

70.0011

12W

4000 K

1080lm

40°

500mm

70.0011

12W

4000 K

1080lm

20°*40°

500mm

70.0012

24W

2700 K

2160lm

20°

1000mm

70.0012

24W

2700 K

2160lm

40°

1000mm

70.0012

24W

2700 K

2160lm

20°*40°

1000mm

70.0012

24W

3000 K

2160lm

20°

1000mm

70.0012

24W

3000 K

2160lm

40°

1000mm

70.0012

24W

3000 K

2160lm

20°*40°

1000mm

70.0012

24W

4000 K

2160lm

20°

1000mm

70.0012

24W

4000 K

2160lm

40°

1000mm

70.0012

24W

4000 K

2160lm

20°*40°

1000mm
