CASSIOPEA
70.1020/70.1021/70.1022/70.1023

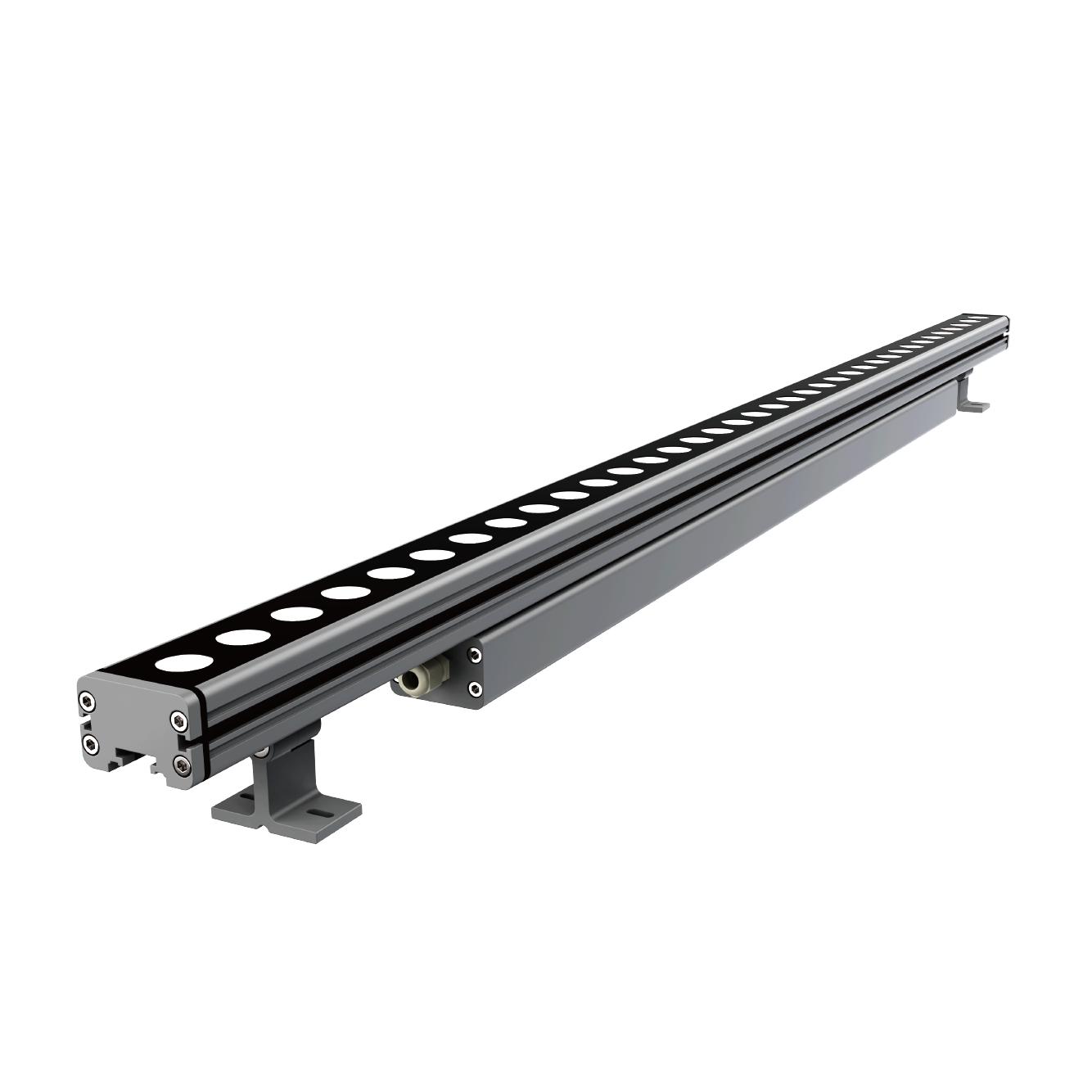

CASSIOPEA 50-White

The Cassiopea family includes a group of wall washers for outdoor spaces. They have a body of light aluminum with powder coating and a pre-treatment for outdoor use, clear glass, and a silicon rubber gasket. They have an IP66 rating and employ the newest generation of light sources, thus achieving a low heat resistance and high lighting efficiency. They are available in a variely of color temperatures and different body colors.

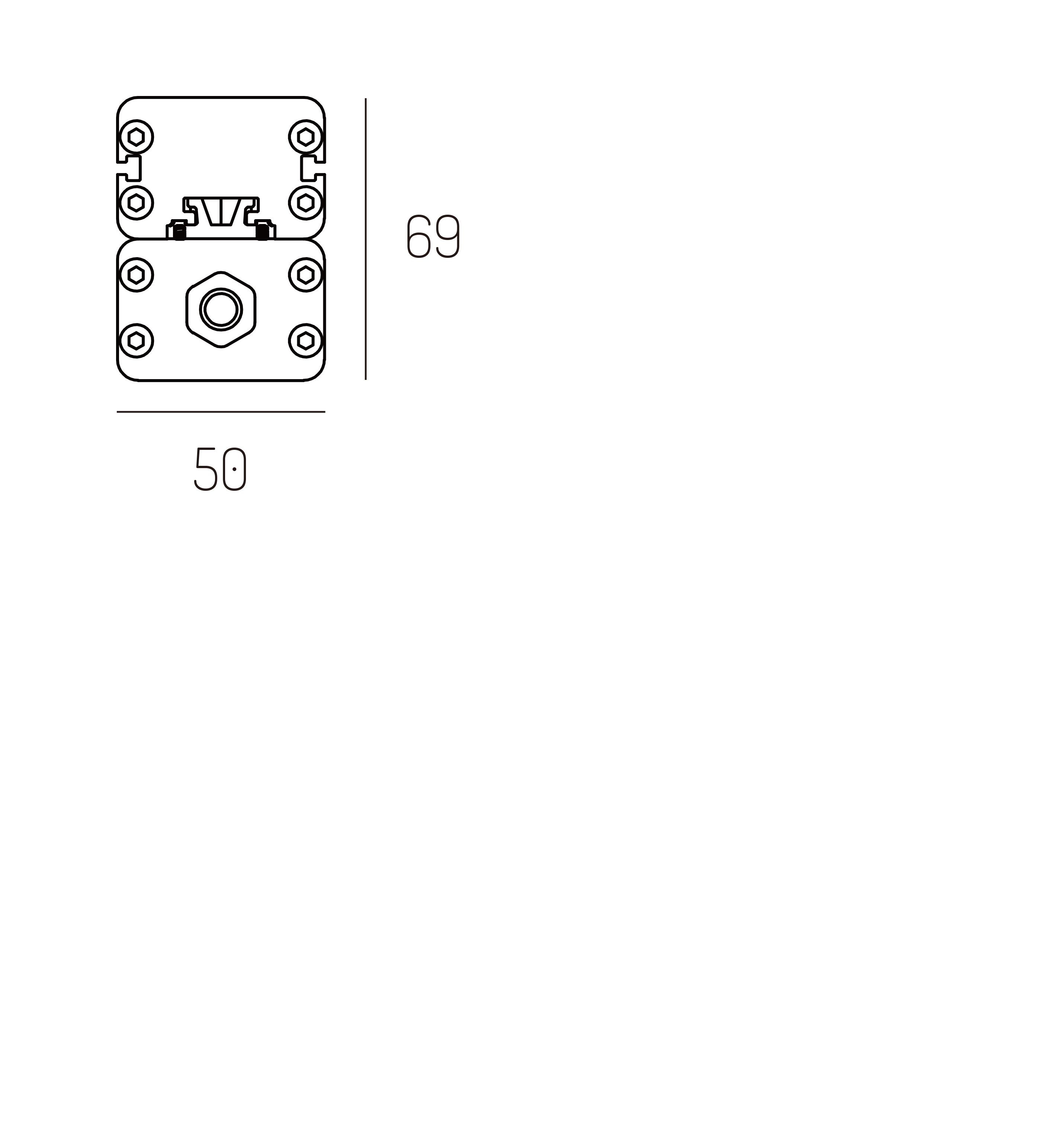

Technical Drawing
product data
  • Fixture Power
    12W/18W/27W/36W
  • Driving Current
    /
  • Lumen Output
    1200lm/1800lm
    2700lm/3600lm
  • Fixture Efficiency
    100.0lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K
    4000K/5000K/6500K

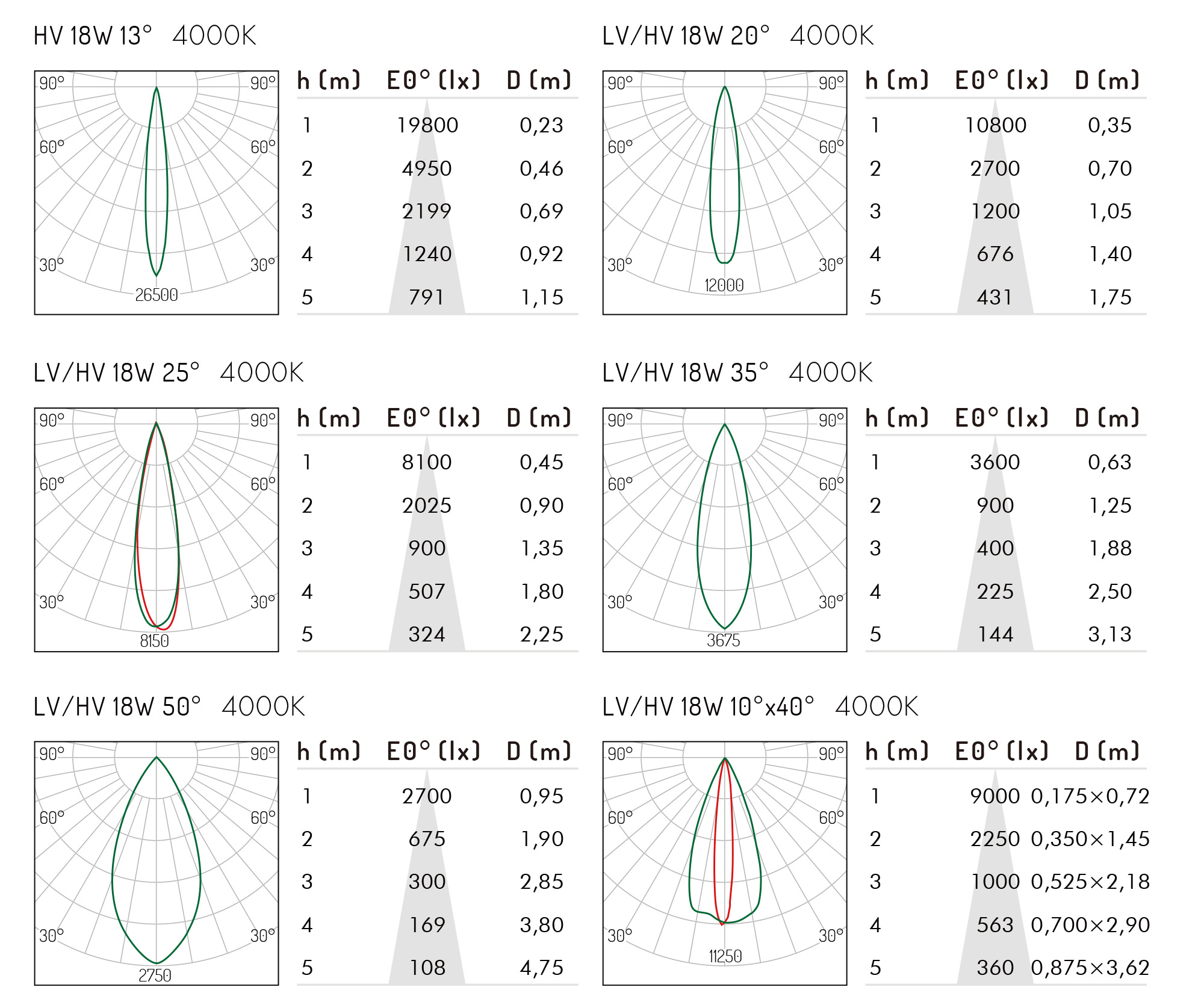

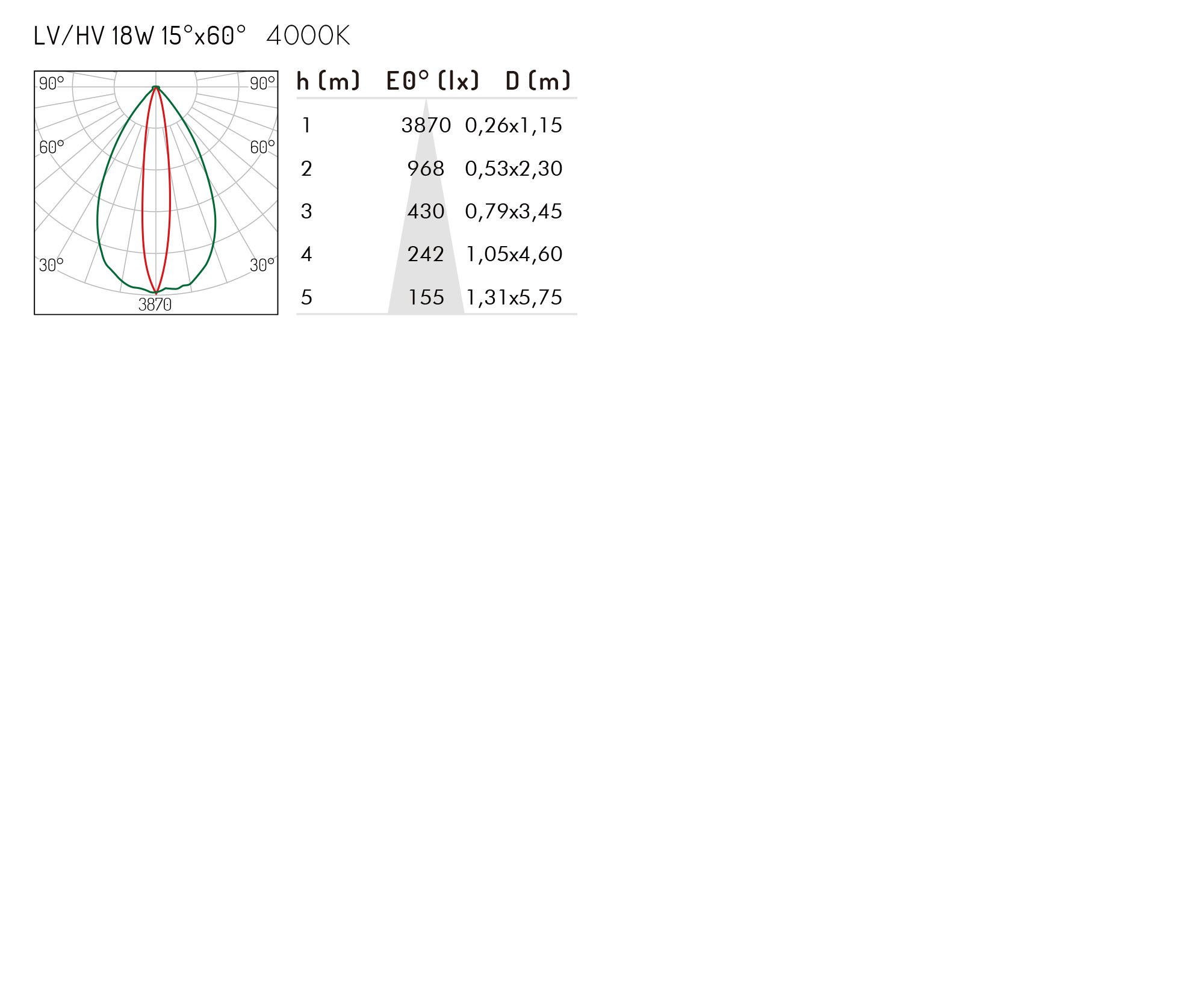

LIGHT DISTRIBUTION
  • Beam Angle
    13°/20°/25°/35°/50°
    10°*40°/15°*60°
  • Source Type
    Citizen COB LED
  • Control Method
    DMX512
    Not Dimmable
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L410/605/900/1190*
    W50*H69mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP66
  • IK Rating
    IK08
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9001
    Cream
    RAL9006
    White Aluminium
    RAL9011
    Graphite Black
    Anodised Charcoal Grey
Optical Accessories
Mounting Accessories
Filter codes by
No.
All No.
70.1020
70.1021
70.1022
70.1023
Power
All Power
12W
18W
27W
36W
Current
All Current
CCT
All CCT
2700K~6500K
Flux
All Flux
1200lm
1800lm
2700lm
3600lm
Beam
All Beam
10°*40°
13°
15°*60°
20°
25°
35°
50°
Length
All Length
1190mm
410mm
605mm
900mm
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
70.1020
12W
2700K~6500K
1200lm
13°
410mm
70.1020
12W
2700K~6500K
1200lm
20°
410mm
70.1020
12W
2700K~6500K
1200lm
25°
410mm
70.1020
12W
2700K~6500K
1200lm
35°
410mm
70.1020
12W
2700K~6500K
1200lm
50°
410mm
70.1020
12W
2700K~6500K
1200lm
10°*40°
410mm
70.1020
12W
2700K~6500K
1200lm
15°*60°
410mm
70.1021
18W
2700K~6500K
1800lm
13°
605mm
70.1021
18W
2700K~6500K
1800lm
20°
605mm
70.1021
18W
2700K~6500K
1800lm
25°
605mm
70.1021
18W
2700K~6500K
1800lm
35°
605mm
70.1021
18W
2700K~6500K
1800lm
50°
605mm
70.1021
18W
2700K~6500K
1800lm
10°*40°
605mm
70.1021
18W
2700K~6500K
1800lm
15°*60°
605mm
70.1022
27W
2700K~6500K
2700lm
13°
900mm
70.1022
27W
2700K~6500K
2700lm
20°
900mm
70.1022
27W
2700K~6500K
2700lm
25°
900mm
70.1022
27W
2700K~6500K
2700lm
35°
900mm
70.1022
27W
2700K~6500K
2700lm
50°
900mm
70.1022
27W
2700K~6500K
2700lm
10°*40°
900mm
70.1022
27W
2700K~6500K
2700lm
15°*60°
900mm
70.1023
36W
2700K~6500K
3600lm
13°
1190mm
70.1023
36W
2700K~6500K
3600lm
20°
1190mm
70.1023
36W
2700K~6500K
3600lm
25°
1190mm
70.1023
36W
2700K~6500K
3600lm
35°
1190mm
70.1023
36W
2700K~6500K
3600lm
50°
1190mm
70.1023
36W
2700K~6500K
3600lm
10°*40°
1190mm
70.1023
36W
2700K~6500K
3600lm
15°*60°
1190mm
