CASSIOPEA 50<br>RGBW Mix

CASSIOPEA

70.1080/70.1081/70.1082/70.1083

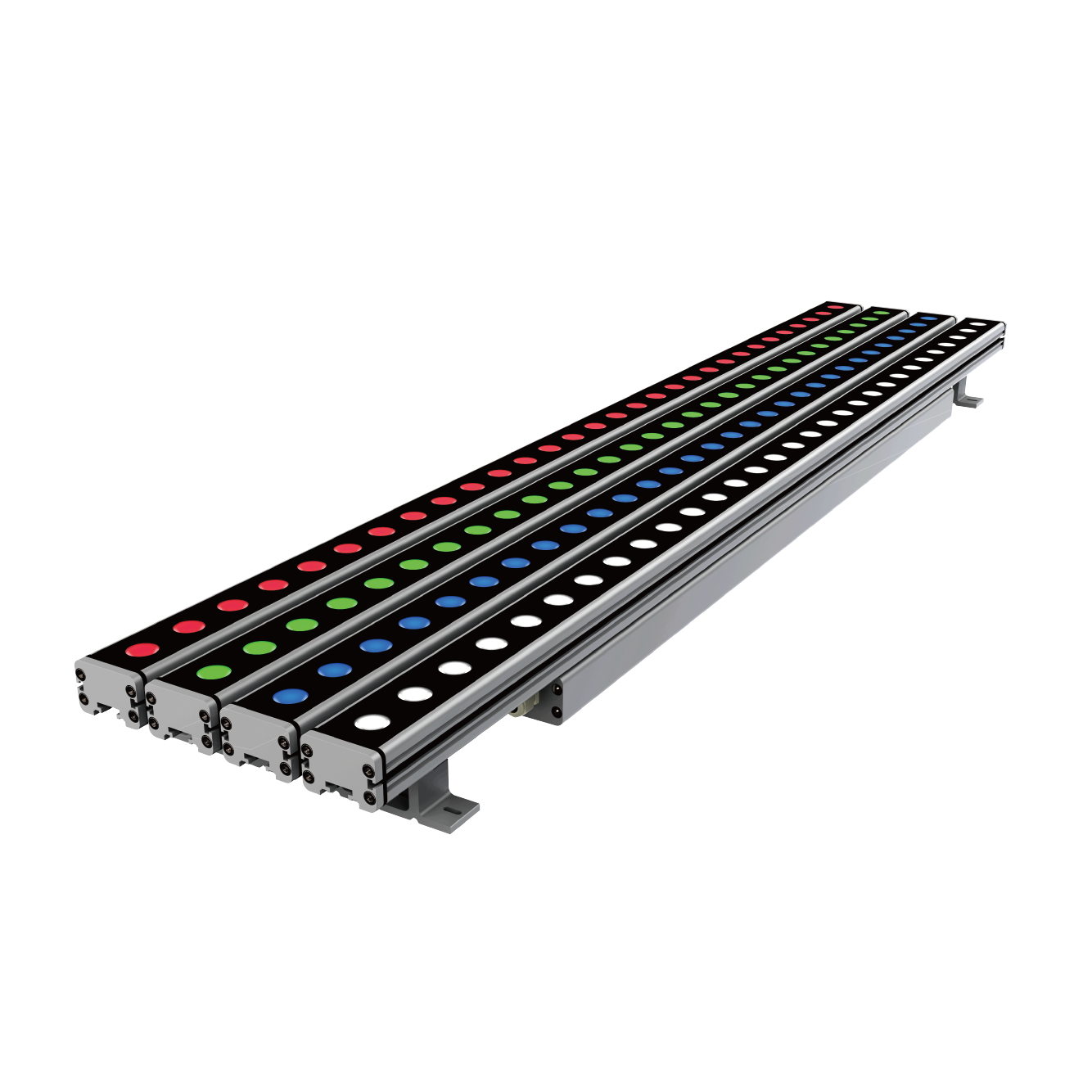

CASSIOPEA 50-RGBW Mix

The Cassiopea family includes a group of wall washers for outdoor spaces. They have a body of light aluminum with powder coating and a pre-treatment for outdoor use, clear glass, and a silicon rubber gasket. They have an IP66 rating and employ the newest generation of light sources, thus achieving a low heat resistance and high lighting efficiency. They are available in a variely of color temperatures and different body colors.

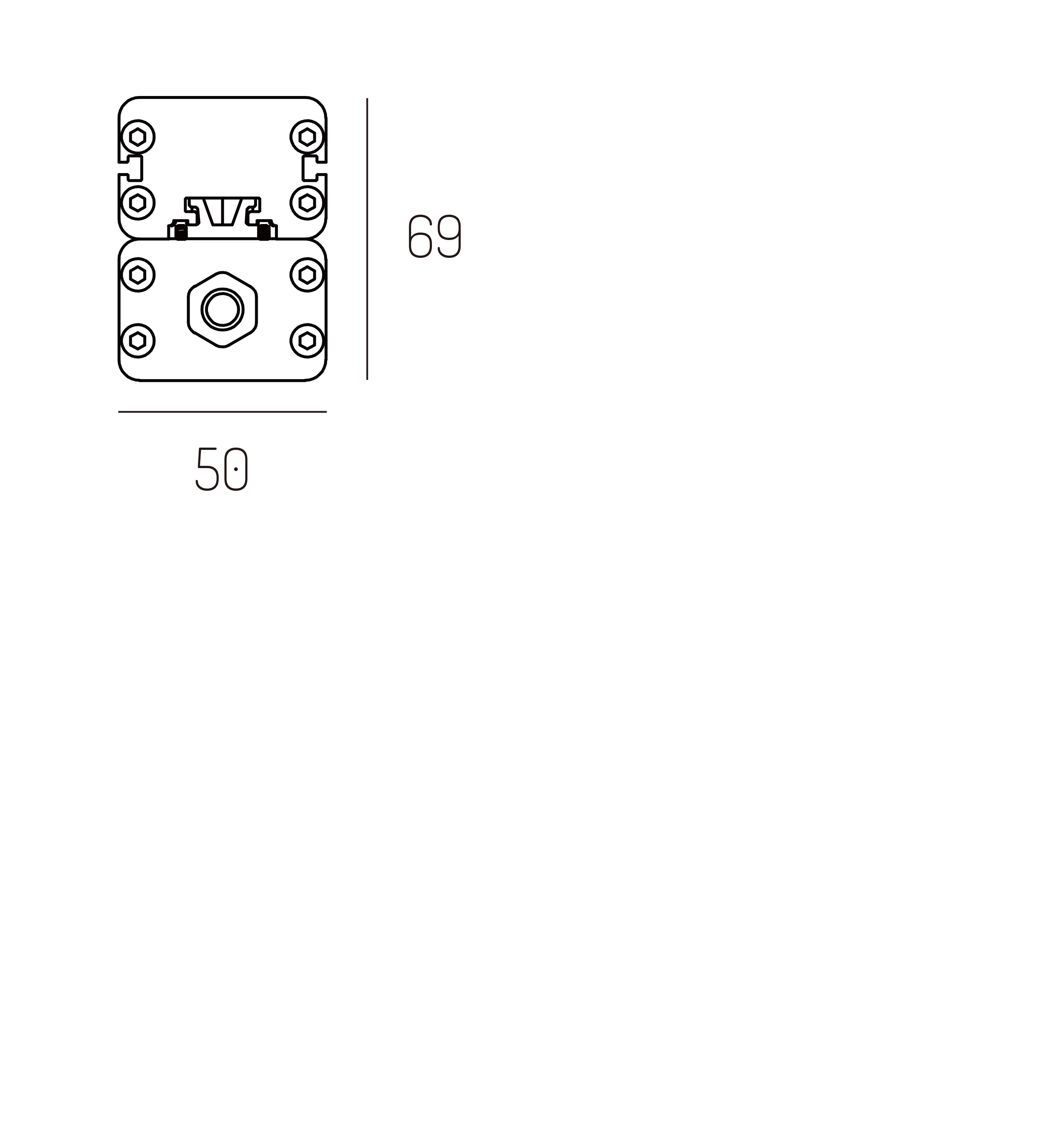

Technical Drawing

product data

Fixture Power
20W/30W/45W/60W
Driving Current
/
Lumen Output
900lm/1350lm
2025lm/2700lm
Fixture Efficiency
45lm/w
CRI
90
Color Temperature
RGBW30/RGBW40/RGBW65

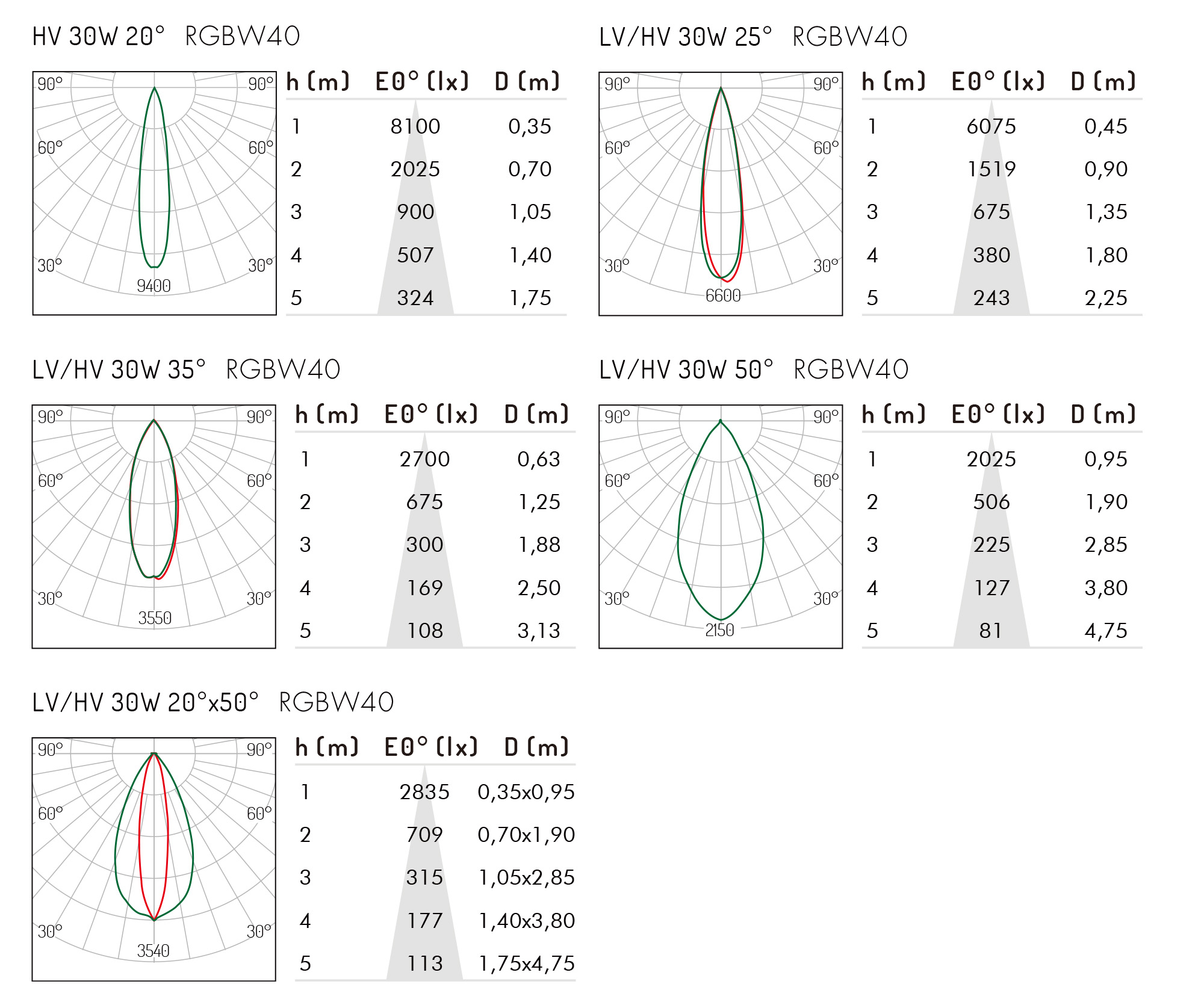

LIGHT DISTRIBUTION

Beam Angle
20°/25°/35°
50°/20°*50°
Source Type
Citizen COB LED
Control Method
DALI Dimming
MacAdam Ellipse
<3 SDCM
Product Dimensions
L410/605/900/1190*
W50*H69mm
Hole Size
/
Weight
/
IP Rating
IP66
IK Rating
IK08
Housing Material
Extruded Aluminium
Housing Color
RAL9001
Cream
RAL9006
White Aluminium
RAL9011
Graphite Black
Anodised Charcoal Grey

Optical Accessories

Mounting Accessories

Filter codes by

No.

All No.

70.1080

70.1081

70.1082

70.1083

Power

All Power

20W

30W

45W

60W

Current

All Current

CCT

All CCT

RGBW30

RGBW40

RGBW65

Flux

All Flux

1350lm

2025lm

2700lm

900lm

Beam

All Beam

20°

20°*50°

25°

35°

50°

Length

All Length

1190mm

410mm

605mm

900mm

LED Qty.

All LED Qty.

Cut out

All Cut out

Size

All Size

Type

All Type

Voltage

All Voltage

No.

Power

Current

CCT

Flux

Beam

Length

LED Qty.

Cut out

Size

Type

Voltage

70.1080

20W

RGBW30

900lm

20°

410mm

70.1080

20W

RGBW40

900lm

20°

410mm

70.1080

20W

RGBW65

900lm

20°

410mm

70.1080

20W

RGBW30

900lm

25°

410mm

70.1080

20W

RGBW40

900lm

25°

410mm

70.1080

20W

RGBW65

900lm

25°

410mm

70.1080

20W

RGBW30

900lm

35°

410mm

70.1080

20W

RGBW40

900lm

35°

410mm

70.1080

20W

RGBW65

900lm

35°

410mm

70.1080

20W

RGBW30

900lm

50°

410mm

70.1080

20W

RGBW40

900lm

50°

410mm

70.1080

20W

RGBW65

900lm

50°

410mm

70.1080

20W

RGBW30

900lm

20°*50°

410mm

70.1080

20W

RGBW40

900lm

20°*50°

410mm

70.1080

20W

RGBW65

900lm

20°*50°

410mm

70.1081

30W

RGBW30

1350lm

20°

605mm

70.1081

30W

RGBW40

1350lm

20°

605mm

70.1081

30W

RGBW65

1350lm

20°

605mm

70.1081

30W

RGBW30

1350lm

25°

605mm

70.1081

30W

RGBW40

1350lm

25°

605mm

70.1081

30W

RGBW65

1350lm

25°

605mm

70.1081

30W

RGBW30

1350lm

35°

605mm

70.1081

30W

RGBW40

1350lm

35°

605mm

70.1081

30W

RGBW65

1350lm

35°

605mm

70.1081

30W

RGBW30

1350lm

50°

605mm

70.1081

30W

RGBW40

1350lm

50°

605mm

70.1081

30W

RGBW65

1350lm

50°

605mm

70.1081

30W

RGBW30

1350lm

20°*50°

605mm

70.1081

30W

RGBW40

1350lm

20°*50°

605mm

70.1081

30W

RGBW65

1350lm

20°*50°

605mm

70.1082

45W

RGBW30

2025lm

20°

900mm

70.1082

45W

RGBW40

2025lm

20°

900mm

70.1082

45W

RGBW65

2025lm

20°

900mm

70.1082

45W

RGBW30

2025lm

25°

900mm

70.1082

45W

RGBW40

2025lm

25°

900mm

70.1082

45W

RGBW65

2025lm

25°

900mm

70.1082

45W

RGBW30

2025lm

35°

900mm

70.1082

45W

RGBW40

2025lm

35°

900mm

70.1082

45W

RGBW65

2025lm

35°

900mm

70.1082

45W

RGBW30

2025lm

50°

900mm

70.1082

45W

RGBW40

2025lm

50°

900mm

70.1082

45W

RGBW65

2025lm

50°

900mm

70.1082

45W

RGBW30

2025lm

20°*50°

900mm

70.1082

45W

RGBW40

2025lm

20°*50°

900mm

70.1082

45W

RGBW65

2025lm

20°*50°

900mm

70.1083

60W

RGBW30

2700lm

20°

1190mm

70.1083

60W

RGBW40

2700lm

20°

1190mm

70.1083

60W

RGBW65

2700lm

20°

1190mm

70.1083

60W

RGBW30

2700lm

25°

1190mm

70.1083

60W

RGBW40

2700lm

25°

1190mm

70.1083

60W

RGBW65

2700lm

25°

1190mm

70.1083

60W

RGBW30

2700lm

35°

1190mm

70.1083

60W

RGBW40

2700lm

35°

1190mm

70.1083

60W

RGBW65

2700lm

35°

1190mm

70.1083

60W

RGBW30

2700lm

50°

1190mm

70.1083

60W

RGBW40

2700lm

50°

1190mm

70.1083

60W

RGBW65

2700lm

50°

1190mm

70.1083

60W

RGBW30

2700lm

20°*50°

1190mm

70.1083

60W

RGBW40

2700lm

20°*50°

1190mm

70.1083

60W

RGBW65

2700lm

20°*50°

1190mm
