CASSIOPEA
70.1120/70.1121/70.1122/70.1123

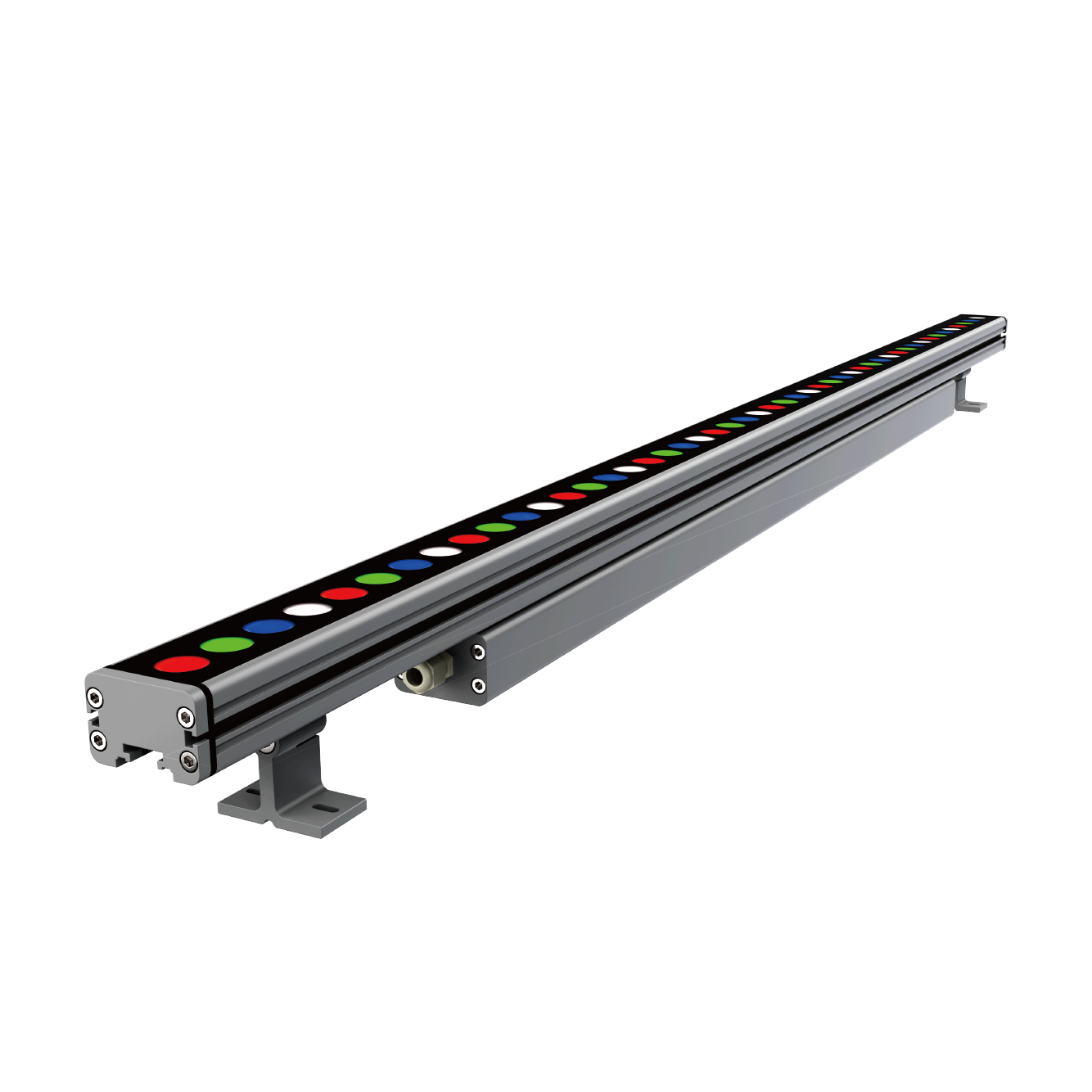

CASSIOPEA 50-RGBW Purarity

The Cassiopea family includes a group of wall washers for outdoor spaces. They have a body of light aluminum with powder coating and a pre-treatment for outdoor use, clear glass, and a silicon rubber gasket. They have an IP66 rating and employ the newest generation of light sources, thus achieving a low heat resistance and high lighting efficiency. They are available in a variely of color temperatures and different body colors.

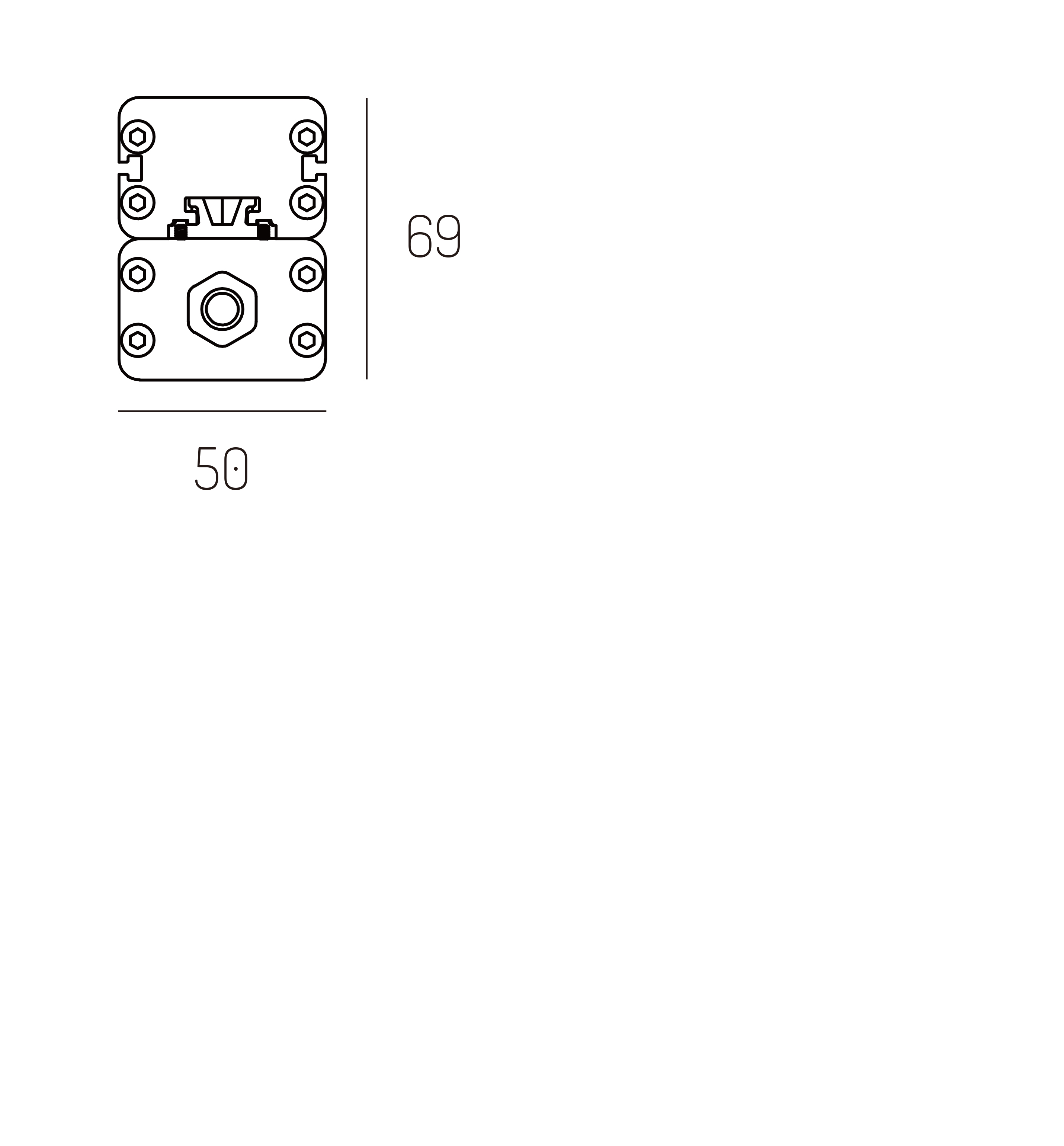

Technical Drawing
product data
  • Fixture Power
    20W/30W/45W/60W
  • Driving Current
    /
  • Lumen Output
    1060lm/1590lm
    2385lm/3185lm
  • Fixture Efficiency
    53lm/w
  • CRI
    90
  • Color Temperature
    RGBW27/RGBW30/RGBW40
    RGBW50/RGBW65

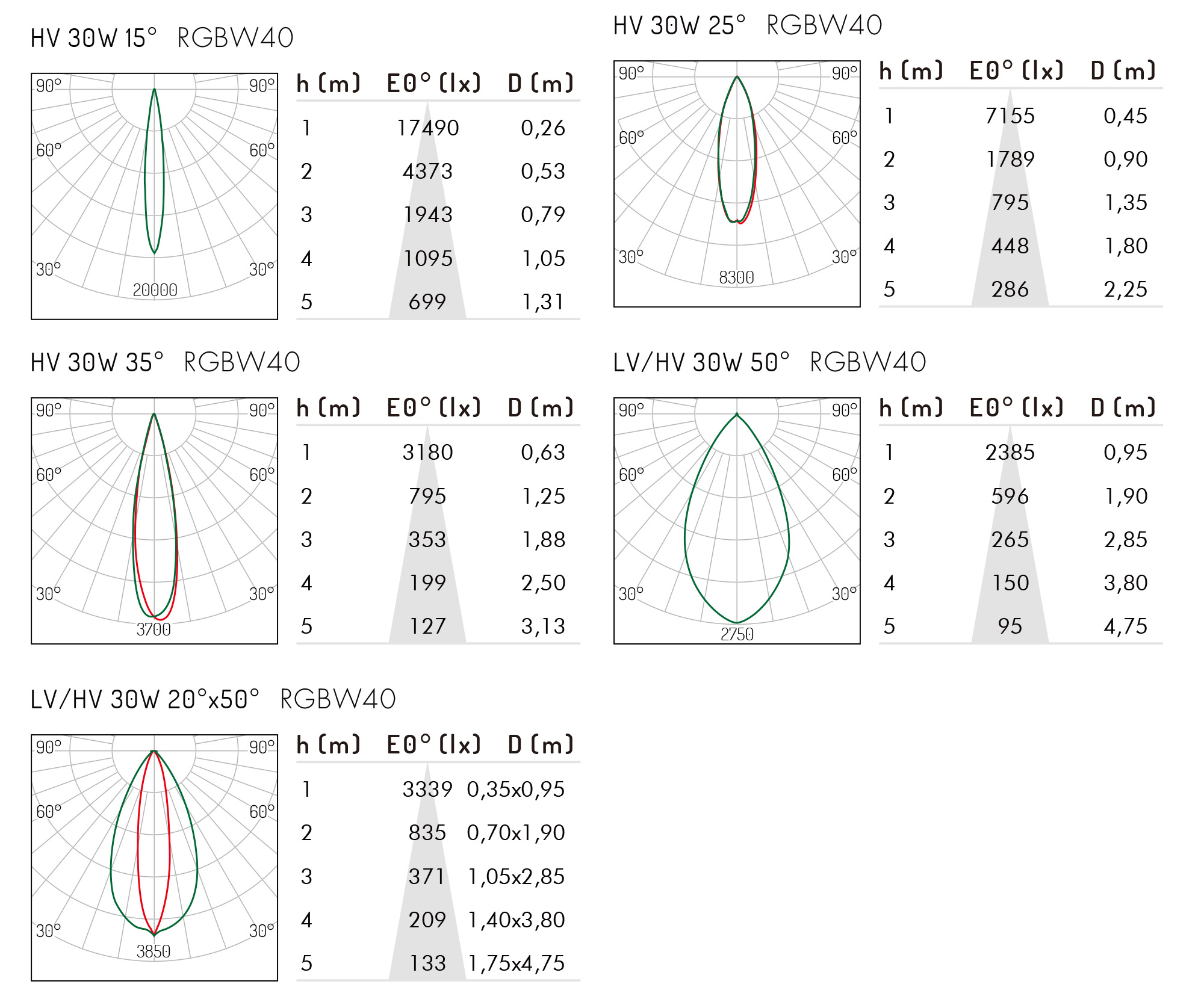

LIGHT DISTRIBUTION
  • Beam Angle
    15°/25°/35°
    50°/20°*50°
  • Source Type
    Citizen COB LED
  • Control Method
    DMX512
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L410/605/900/1190*
    W50*H69mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP66
  • IK Rating
    IK08
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9001
    Cream
    RAL9006
    White Aluminium
    RAL9011
    Graphite Black
    Anodised Charcoal Grey
Optical Accessories
Mounting Accessories
Filter codes by
No.
All No.
70.1120
70.1121
70.1122
70.1123
Power
All Power
20W
30W
45W
60W
Current
All Current
CCT
All CCT
RGBW27-65
Flux
All Flux
1060lm
1590lm
2385lm
3180lm
Beam
All Beam
15°
20°*50°
25°
35°
50°
Length
All Length
1190mm
410mm
605mm
900mm
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
70.1120
20W
RGBW27-65
1060lm
15°
410mm
70.1120
20W
RGBW27-65
1060lm
25°
410mm
70.1120
20W
RGBW27-65
1060lm
35°
410mm
70.1120
20W
RGBW27-65
1060lm
50°
410mm
70.1120
20W
RGBW27-65
1060lm
20°*50°
410mm
70.1121
30W
RGBW27-65
1590lm
15°
605mm
70.1121
30W
RGBW27-65
1590lm
25°
605mm
70.1121
30W
RGBW27-65
1590lm
35°
605mm
70.1121
30W
RGBW27-65
1590lm
50°
605mm
70.1121
30W
RGBW27-65
1590lm
20°*50°
605mm
70.1122
45W
RGBW27-65
2385lm
15°
900mm
70.1122
45W
RGBW27-65
2385lm
25°
900mm
70.1122
45W
RGBW27-65
2385lm
35°
900mm
70.1122
45W
RGBW27-65
2385lm
50°
900mm
70.1122
45W
RGBW27-65
2385lm
20°*50°
900mm
70.1123
60W
RGBW27-65
3180lm
15°
1190mm
70.1123
60W
RGBW27-65
3180lm
25°
1190mm
70.1123
60W
RGBW27-65
3180lm
35°
1190mm
70.1123
60W
RGBW27-65
3180lm
50°
1190mm
70.1123
60W
RGBW27-65
3180lm
20°*50°
1190mm
