CASSIOPEA 50<br>Tunable White

CASSIOPEA

70.1040/70.1041/70.1042/70.1043

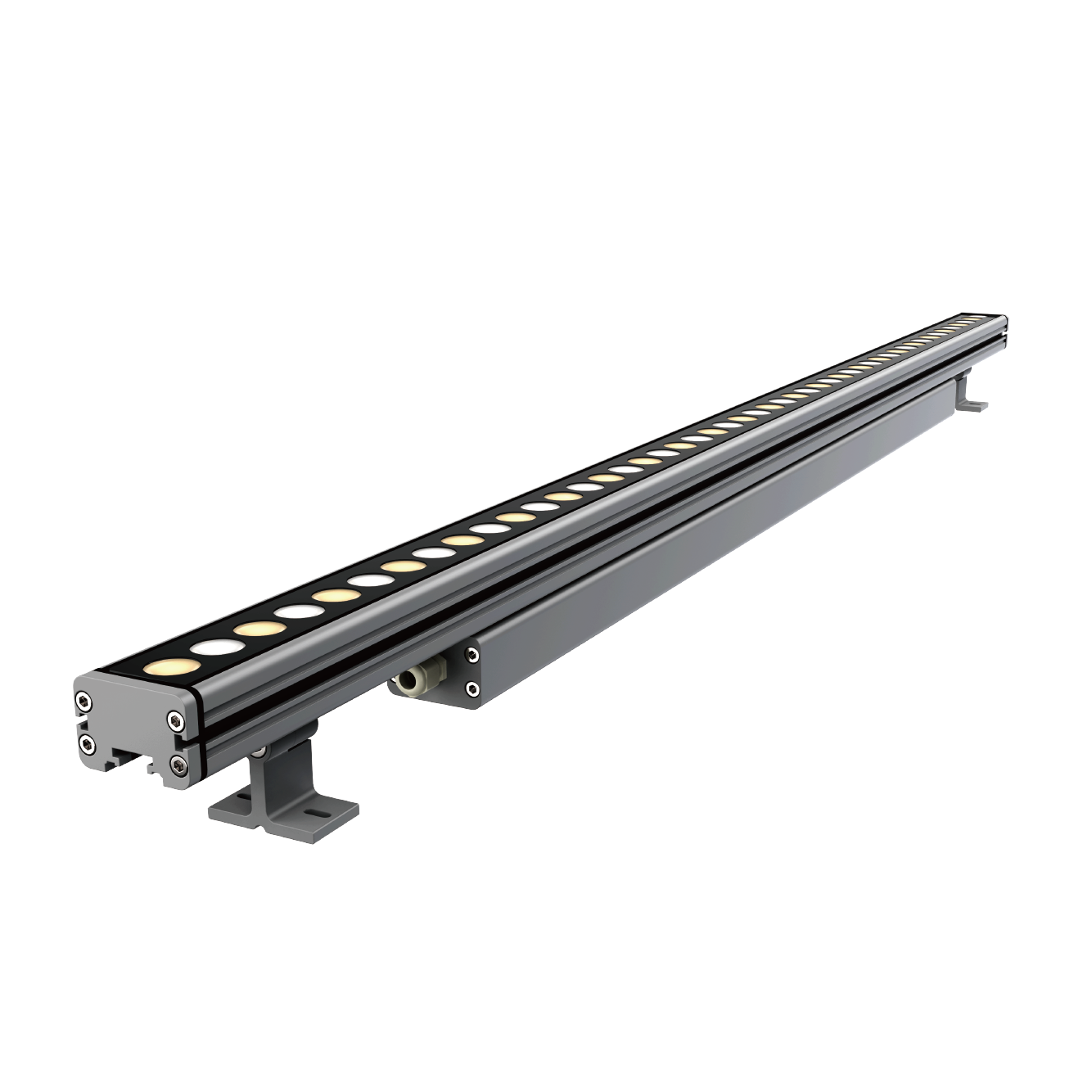

CASSIOPEA 50-Tunable White

The Cassiopea family includes a group of wall washers for outdoor spaces. They have a body of light aluminum with powder coating and a pre-treatment for outdoor use, clear glass, and a silicon rubber gasket. They have an IP66 rating and employ the newest generation of light sources, thus achieving a low heat resistance and high lighting efficiency. They are available in a variely of color temperatures and different body colors.

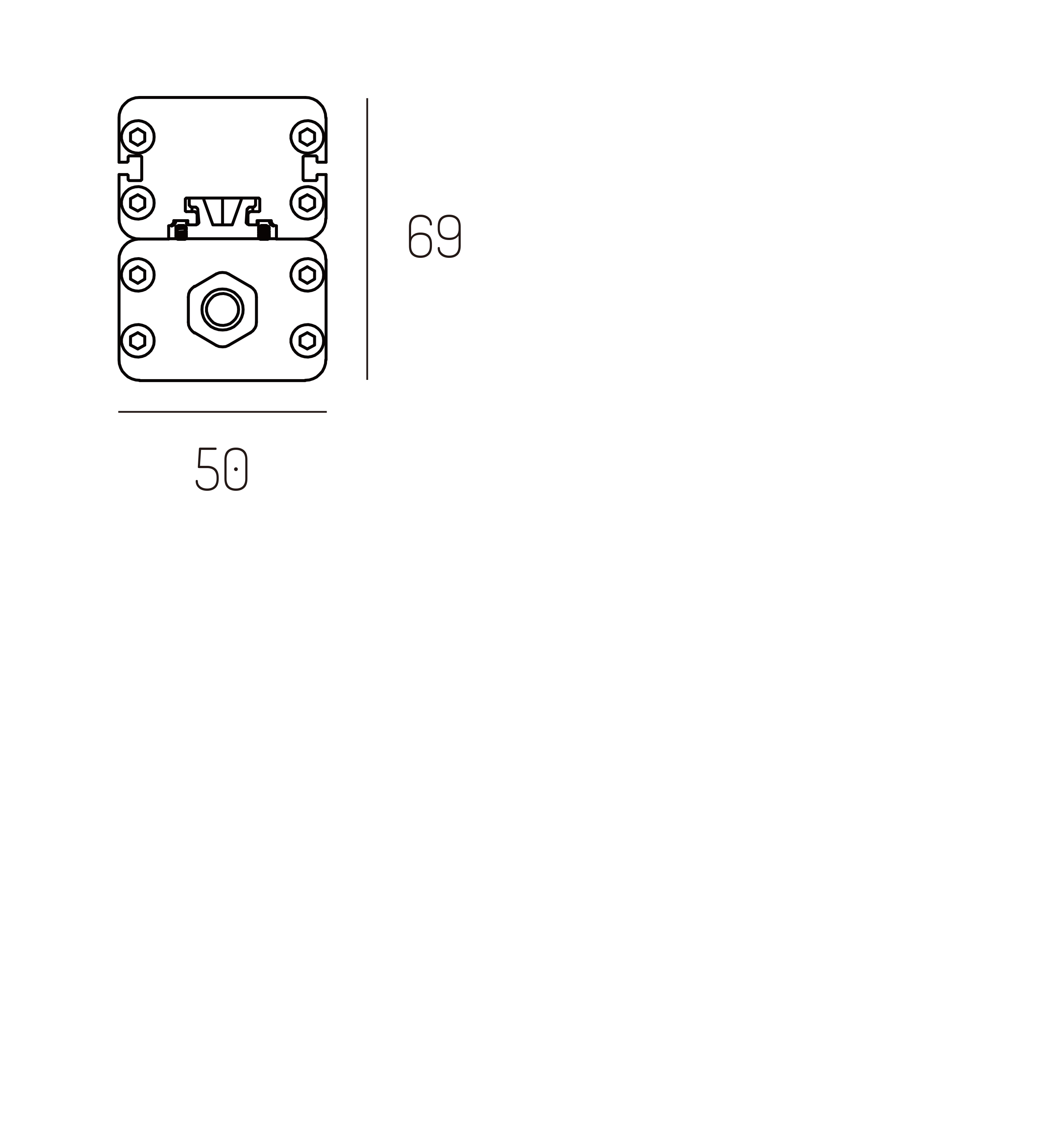

Technical Drawing

product data

Fixture Power
20W/30W/45W/60W
Driving Current
/
Lumen Output
1800lm/2700lm
4050lm/5400lm
Fixture Efficiency
90.0lm/w
CRI
90
Color Temperature
2700K~6500K

LIGHT DISTRIBUTION

Beam Angle
15°//25°/35°
50°/15°*50°
Source Type
Citizen COB LED
Control Method
DMX512
MacAdam Ellipse
<3 SDCM
Product Dimensions
L410/605/900/1190*
W50*H69mm
Hole Size
/
Weight
/
IP Rating
IP66
IK Rating
IK08
Housing Material
Extruded Aluminium
Housing Color
RAL9001
Cream
RAL9006
White Aluminium
RAL9011
Graphite Black
Anodised Charcoal Grey

Optical Accessories

Mounting Accessories

Filter codes by

No.

All No.

70.1040

70.1041

70.1042

70.1043

Power

All Power

20W

30W

45W

60W

Current

All Current

CCT

All CCT

2700K~6500K

Flux

All Flux

1800lm

2700lm

4050lm

5400lm

Beam

All Beam

15°

15°*50°

25°

35°

50°

Length

All Length

1190mm

410mm

605mm

900mm

LED Qty.

All LED Qty.

Cut out

All Cut out

Size

All Size

Type

All Type

Voltage

All Voltage

No.

Power

Current

CCT

Flux

Beam

Length

LED Qty.

Cut out

Size

Type

Voltage

70.1040

20W

2700K~6500K

1800lm

15°

410mm

70.1040

20W

2700K~6500K

1800lm

25°

410mm

70.1040

20W

2700K~6500K

1800lm

35°

410mm

70.1040

20W

2700K~6500K

1800lm

50°

410mm

70.1040

20W

2700K~6500K

1800lm

15°*50°

410mm

70.1041

30W

2700K~6500K

2700lm

15°

605mm

70.1041

30W

2700K~6500K

2700lm

25°

605mm

70.1041

30W

2700K~6500K

2700lm

35°

605mm

70.1041

30W

2700K~6500K

2700lm

50°

605mm

70.1041

30W

2700K~6500K

2700lm

15°*50°

605mm

70.1042

45W

2700K~6500K

4050lm

15°

900mm

70.1042

45W

2700K~6500K

4050lm

25°

900mm

70.1042

45W

2700K~6500K

4050lm

35°

900mm

70.1042

45W

2700K~6500K

4050lm

50°

900mm

70.1042

45W

2700K~6500K

4050lm

15°*50°

900mm

70.1043

60W

2700K~6500K

5400lm

15°

1190mm

70.1043

60W

2700K~6500K

5400lm

25°

1190mm

70.1043

60W

2700K~6500K

5400lm

35°

1190mm

70.1043

60W

2700K~6500K

5400lm

50°

1190mm

70.1043

60W

2700K~6500K

5400lm

15°*50°

1190mm

Reset all filters

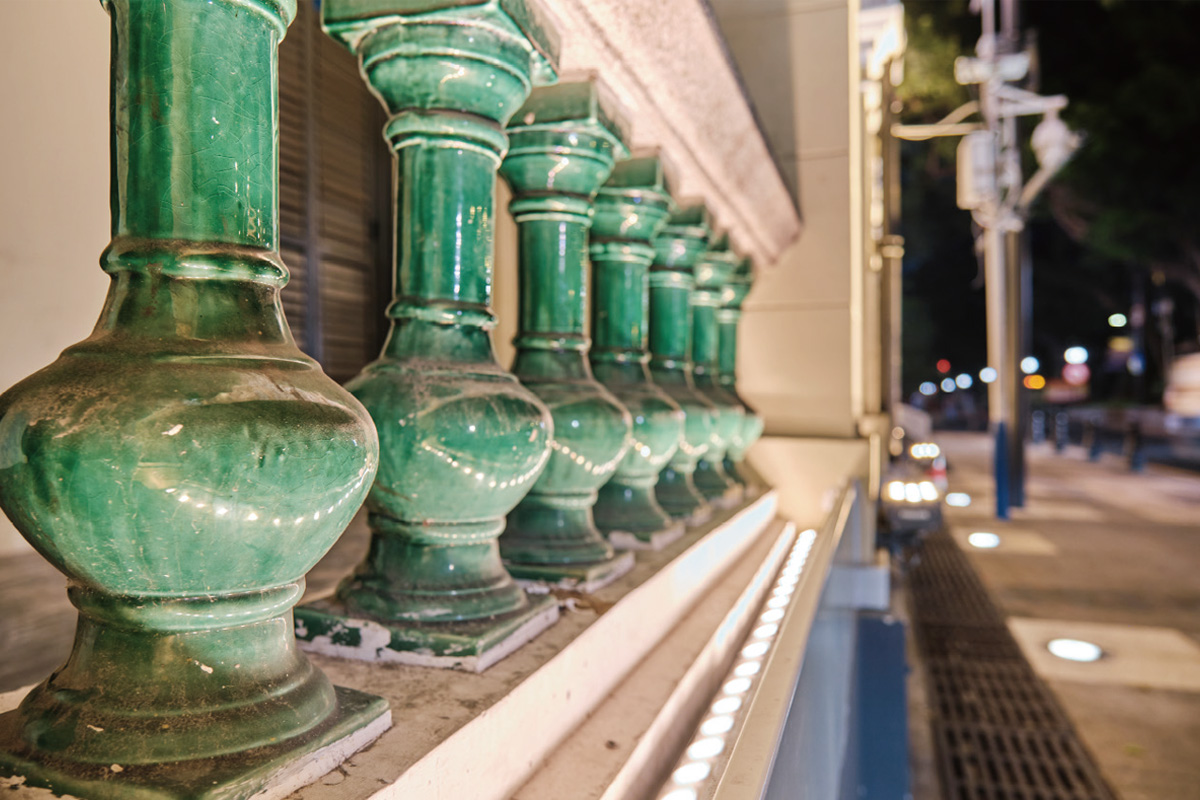

Inspiration
